Disassembly And Assembly Of Subassemblies: Piston: Assembly

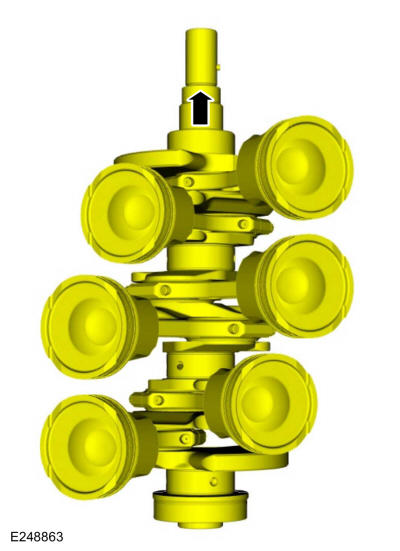

- If the piston and/or connecting rod are being installed new, the piston rod orientation should be facing toward the front of the engine block.

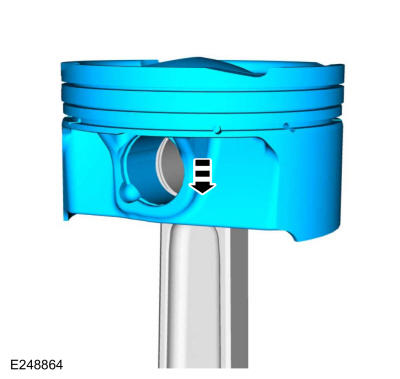

- Install the piston to the connecting rod.

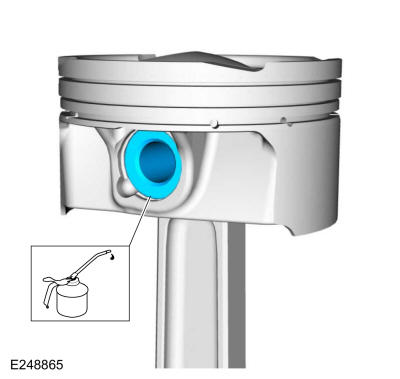

- Lubricate with clean engine oil and install the piston pin.
Material: Castrol® EDGE® Supercar 5W-50 (WSS-M2C931-C)
-

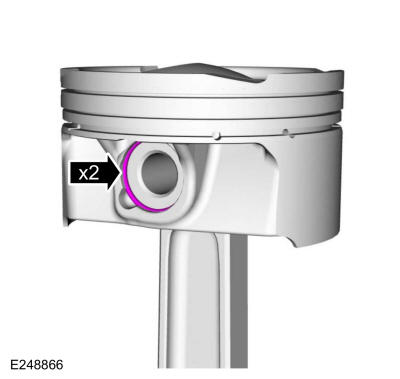

NOTE: The piston pin retaining clip gap orientation must be toward the top or dome of piston.
Install the piston retainers.

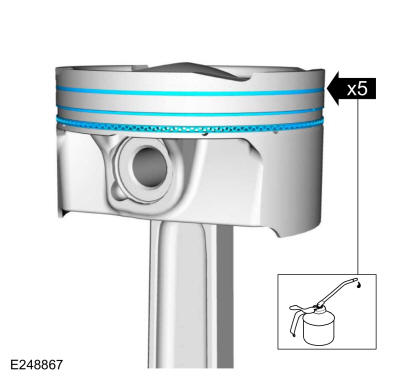

- Lubricate with clean engine oil and install the piston rings.
Material: Castrol® EDGE® Supercar 5W-50 (WSS-M2C931-C)
-
NOTE: This is for the RH pistons.
