Exploded View Of Lower Engine Block

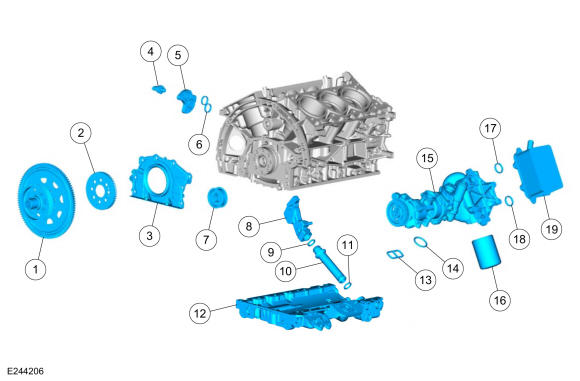

Lower Engine Block (View 1)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6375 | Starter ring gear |
| 2 | 12A227 | Crankshaft sensor ring |
| 3 | 6K301 | Crankshaft rear seal retainer plate |
| 4 | 9D290 | Oil pressure sensor |
| 5 | -- | Oil filter adapter block off plate |
| 6 | -- | Oil filter adapter block off plate gasket |
| 7 | -- | Oil pump belt tensioner |
| 8 | 6622 | Oil feed manifold |
| 9 | -- | Tube and filter O-ring seal |
| 10 | 6622 | Tube and filter assembly |
| 11 | -- | Tube and filter O-ring seal |
| 12 | 6675 | Oil pan |
| 13 | 6L621 | Oil pump seal |
| 14 | 6L621 | Oil pump O-ring seal |
| 15 | 6600 | Oil pump assembly |
| 16 | 6714 | Engine oil filter |
| 17 | 6840 | Engine oil cooler O-ring seal |
| 18 | 6840 | Engine oil cooler O-ring seal |
| 19 | 6A642 | Engine oil cooler |

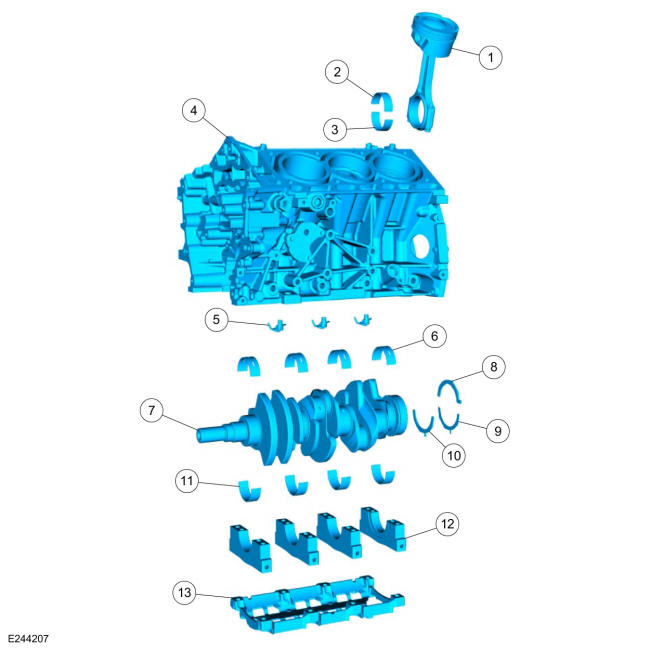

Lower Engine Block (View 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 6110 | Piston and connecting rod assembly (6 required) |
| 2 | 6211 | Connecting rod upper bearing (6 required) |
| 3 | 6211 | Connecting rod lower bearing (6 required) |
| 4 | 6010 | Cylinder block |
| 5 | 6K868 | Piston oil cool valve (3 required) |
| 6 | 6333 | Cylinder block crankshaft main bearing (4 required) |
| 7 | 6303 | Crankshaft |
| 8 | 6A341 | Crankshaft upper thrust inner washer |
| 9 | 6A341 | Crankshaft upper thrust outer washer |
| 10 | 6K302 | Crankshaft lower thrust washer |
| 11 | 6A338 | Lower crankshaft main bearings (4 required) |
| 12 | 6325 | Lower crankshaft main bearing caps (4 required) |
| 13 | 6C364 | Main bearing cap support brace |
