Fuel Pump Driver Module (FPDM): Installation

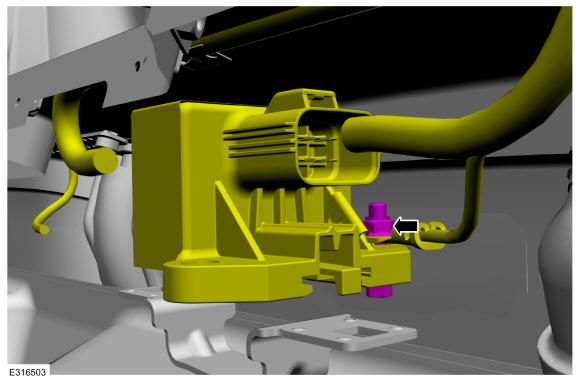

- Install the ground wire, then install and tighten the ground bolt and nut.
Torque: 106 lb.in (12 Nm)

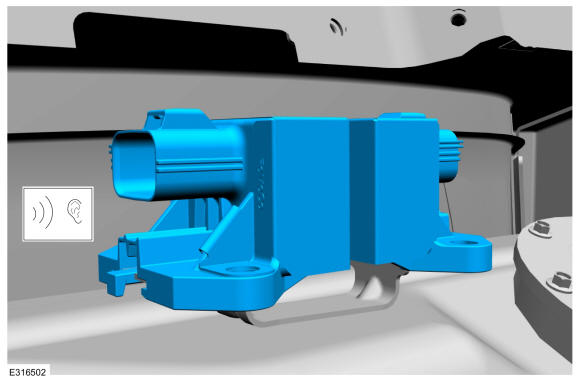

- Slide the fuel pump driver modules on to the bracket until they lock in place.
-
- Install and tighten the left fuel pump driver module ground bolt and nut.
Torque: 106 lb.in (12 Nm)

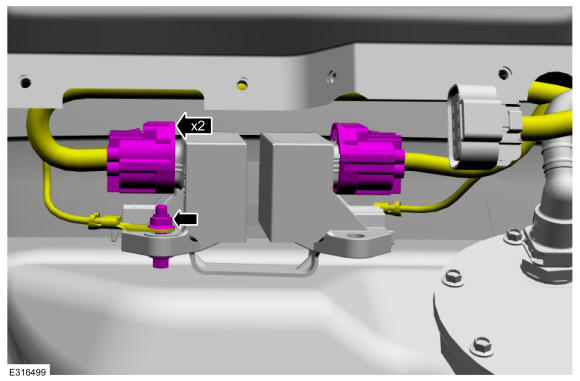

- Connect the fuel pump driver module electrical connectors.
- Install and tighten the left fuel pump driver module ground bolt and nut.
-
- Apply thread lock to the bolts.

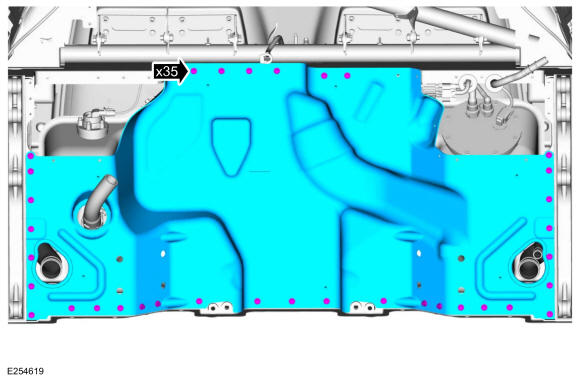

- Install the engine bulkhead panel and the bolts.
Material: Motorcraft® Thread lock and Sealer / TA-25-B
-

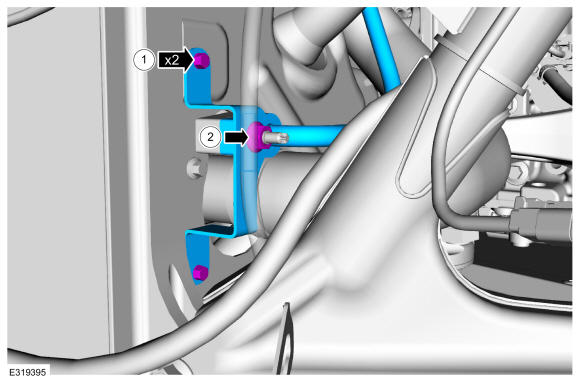

- Install the bracket, attach the line the A/C compressor outlet line, then install and tighten the bolts.
Torque: 18 lb.ft (25 Nm)
- Install and tighten the nut.
Torque: 97 lb.in (11 Nm)
- Install the bracket, attach the line the A/C compressor outlet line, then install and tighten the bolts.
- Install the engine mounts. Refer to: Engine Mount LH . Refer to: Engine Mount RH .
-
- Apply thread lock to the bolts.

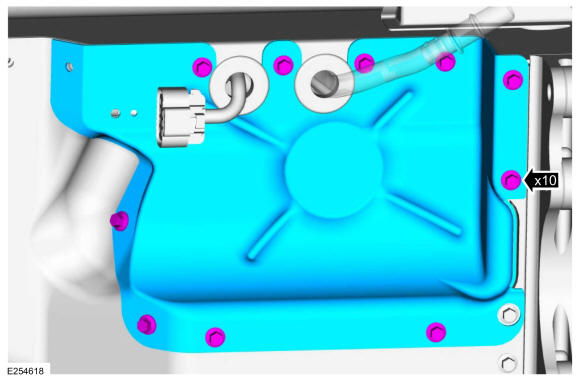

- Install the RH access panel and the bolts.
Material: Motorcraft® Thread lock and Sealer / TA-25-B
Torque: 97 lb.in (11 Nm)
-
- Apply thread lock to the bolts.

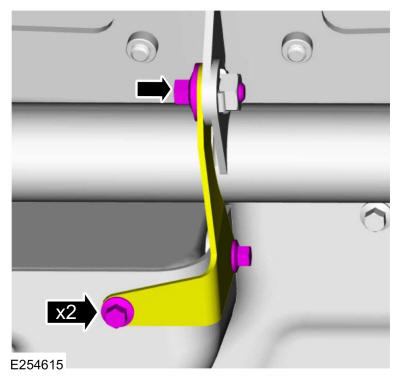

- Position back the right bracket, then install and tighten install the lower bolts.
Material: Motorcraft® Thread lock and Sealer / TA-25-B
Torque: 97 lb.in (11 Nm)
- Tighten the upper bolt.
Torque: 18 lb.ft (25 Nm)
-
- Apply thread lock to the bolts.

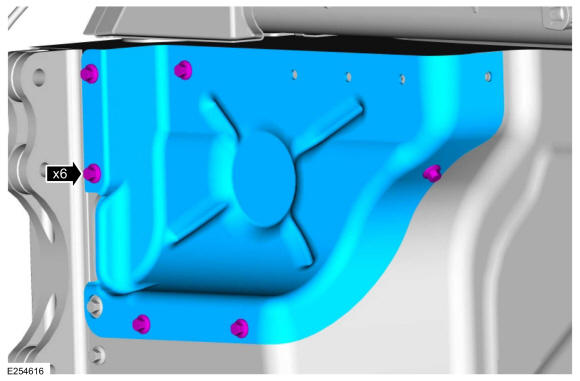

- Install the LH access panel and the bolts.
Material: Motorcraft® Thread lock and Sealer / TA-25-B
Torque: 97 lb.in (11 Nm)
-
- Apply thread lock to the bolts.

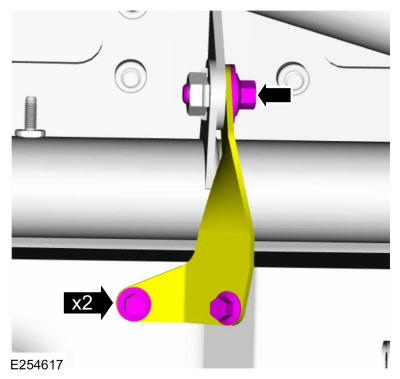

- Position back the left bracket, then install and tighten the lower bolts.
Material: Motorcraft® Thread lock and Sealer / TA-25-B
Torque: 97 lb.in (11 Nm)
- Tighten the upper bolt.
Torque: 18 lb.ft (25 Nm)
-
- Apply thread lock to the bolts.

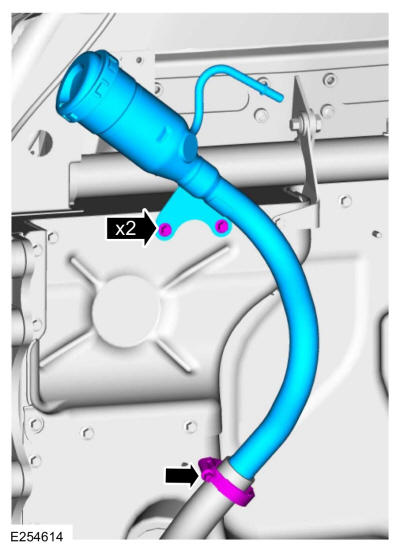

- Install the fuel tank filler pipe and bolts.
Material: Motorcraft® Thread lock and Sealer / TA-25-B
Torque: 97 lb.in (11 Nm)
- Tighten the clamp.
Torque: 44 lb.in (5 Nm)
- Install the rear frame structure and powertrain. Refer to: Rear Frame Structure and Powertrain .
