Pinpoint Tests RJ: Reductant Tank Level: Introduction
This pinpoint test is intended to diagnose the following:
- reductant quality module
- reductant level sensor
- harness circuits: CAN2+, CAN2-, GND, RDL1, RDL2, RDL3, SIGRTN and VPWR
- reductant dosage control module (5H298)
- PCM (12A650)

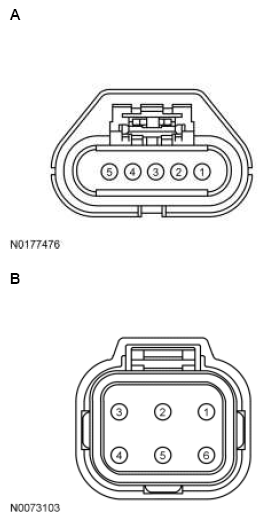

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-650/F-750, F-150, F-Series Super Duty | A | 3 2 1 4 |
CAN2- CAN2+ GND VPWR |
| Transit Connect | B | 2 3 |
GND VPWR |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Transit Connect | A | 84 65 |
CAN2- CAN2+ |
| All other vehicles | B | 15 14 |
CAN2- CAN2+ |
