NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

reductant pump
reductant pump control module
harness circuits: RDPAP, RDPBP, RDPC, RDPCP, RDPGND, RDPM and VPWR
reductant dosage control module (5H298)
PCM (12A650)

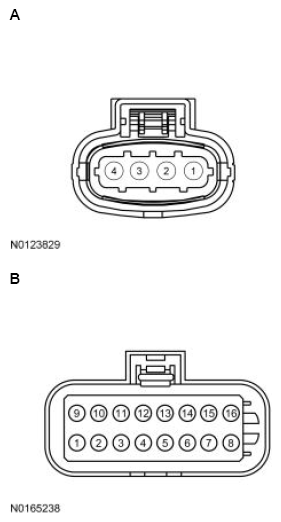

Fig 1: Reductant Pump Assembly Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit Connect	A	4 3	RDPPWR RDPC
All other vehicles	B	11 16 8 15 7	GND RDPCP RDPBP GND RDPAP

Fig 2: Reductant Pump Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
7	RDPCP (Reductant Pump C Phase)
2	RDPBP (Reductant Pump B Phase)
6	RDPAP (Reductant Pump A Phase)
3	RDPM (Reductant Pump Monitor)
4	RDPC (Reductant Pump Control)
1, 8	GND (Ground)
5	VPWR (Vehicle Power)

Fig 3: Reductant Dosage Control Module Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
51	RDPPWR (Reductant Pump Power)
29	RDPC (Reductant Pump Control)

Fig 4: Powertrain Control Module-T (PCM-T) Connector

Courtesy of FORD MOTOR CO.

Pin	Circuit
20	RDPM (Reductant Pump Monitor)
17	RDPC (Reductant Pump Control)
