Pinpoint Tests MC: Fuel Temperature Sensor: Introduction
This pinpoint test is intended to diagnose the following:
- FRT sensor (9F951)
- fuel pressure and temperature sensor
- harness circuits: FRT and SIGRTN
- PCM (12A650)

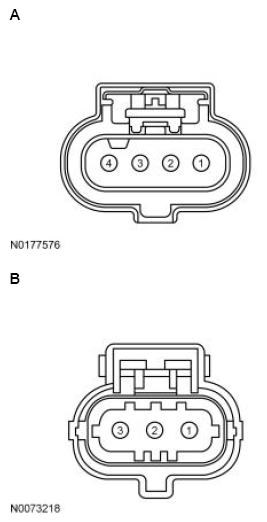

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-650/F-750 | A | 4 5 |
SIGRTN FRT |
| F-150, F-Series Super Duty | A | 1 4 |
SIGRTN FRT |
| Transit Connect | B | 3 2 |
SIGRTN FLPT |

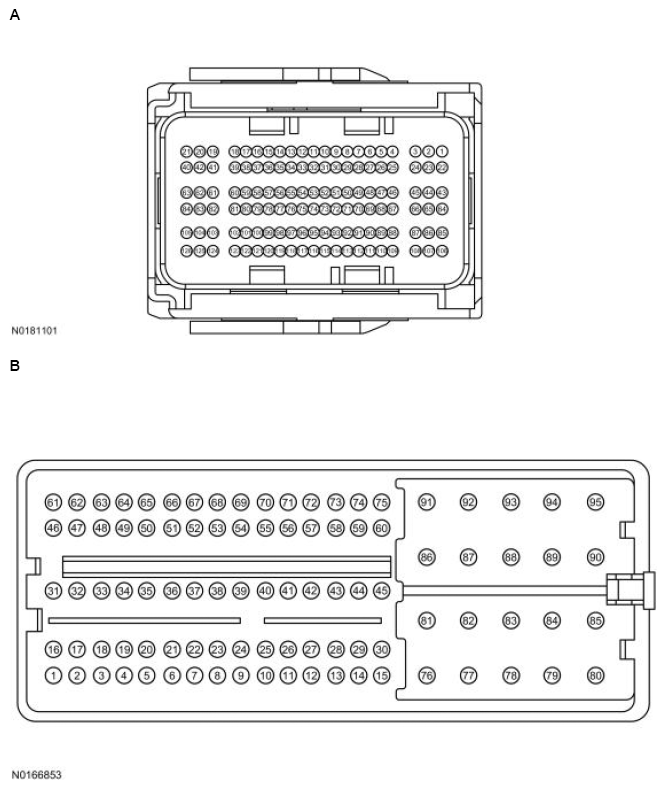

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-150 | A | 92 | FRT |
| F-Series Super Duty | A | 92 116 |
FRT SIGRTN |
| Transit Connect | B | 53 4 53 |
FRT SIGRTN FLPT |
| All other vehicles | A | 92 92 |
FRT FLPT |
