NOTE: Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.

This pinpoint test is intended to diagnose the following:

ECT sensor (12A648)
harness circuits: ECT and SIGRTN
PCM (12A650)

TEMPERATURE AND RESISTANCE VALUE SPECIFICATION (APPROXIMATE)

°C	°F	Ohms
100	212	2, 080
90	194	2, 803
80	176	3, 836
70	158	5, 337
60	140	7, 556
50	122	10, 908
45	113	13, 216
40	104	16, 092
35	95	19, 696
30	86	24, 329
25	77	30, 000
20	68	37, 352
15	59	46, 797
10	50	59, 016
5	41	74, 940
0	32	95, 851
-5	23	123, 485
-10	14	160, 313
-15	5	209, 816
-20	-4	276, 959
-30	-22	496, 051
-40	-40	925, 021

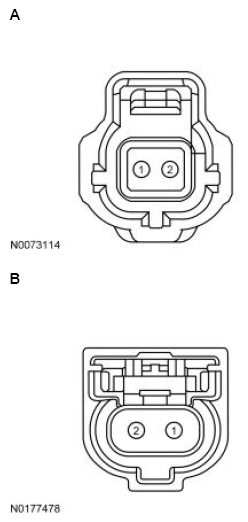

Fig 1: Engine Coolant Temperature (ECT) Sensor Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
F-650/F-750	A	2 1	SIGRTN ECT
All other vehicles	B	2 1	SIGRTN ECT

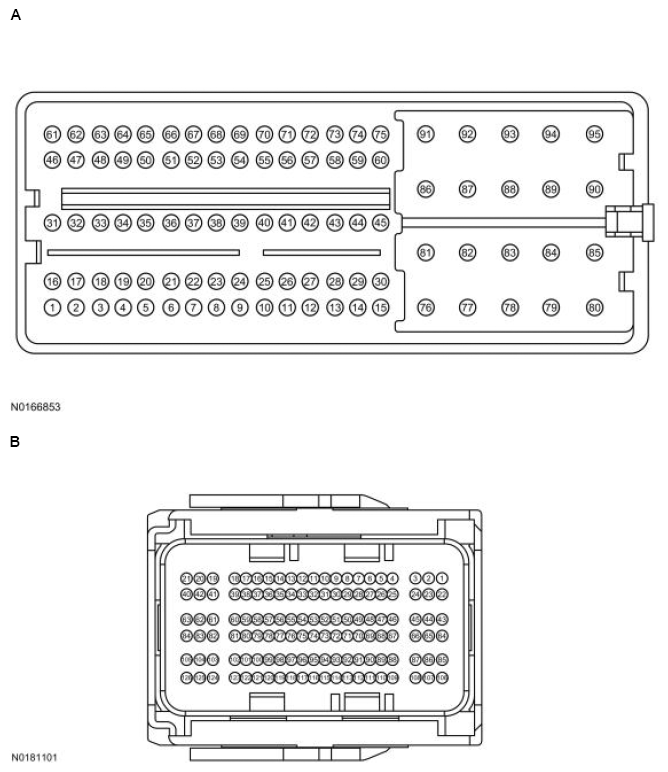

Fig 2: Powertrain Control Module-E (PCM-E) Connector

Courtesy of FORD MOTOR CO.

Vehicle	Connector	Pin	Circuit
Transit Connect	A	57	ECT
All other vehicles	B	36 34	SIGRTN ECT
