Pinpoint Tests C: Crankcase Ventilation Sensor: Introduction
NOTE:
Regeneration may occur during normal operation. During regeneration, diagnostic procedures may display biased values. If a regeneration occurs during diagnostic procedures, allow the process to complete before continuing diagnostics.
This pinpoint test is intended to diagnose the following:
- harness circuits: CRNKCSVT, CVHC, GND, SIGRTN, VBPWR and VPWR
- crankcase ventilation sensor
- crankcase ventilation heater
- PCM (12A650)
| Pin | Circuit |
|---|---|
| 2 | CRNKCSVT (Crankcase Ventilation) |

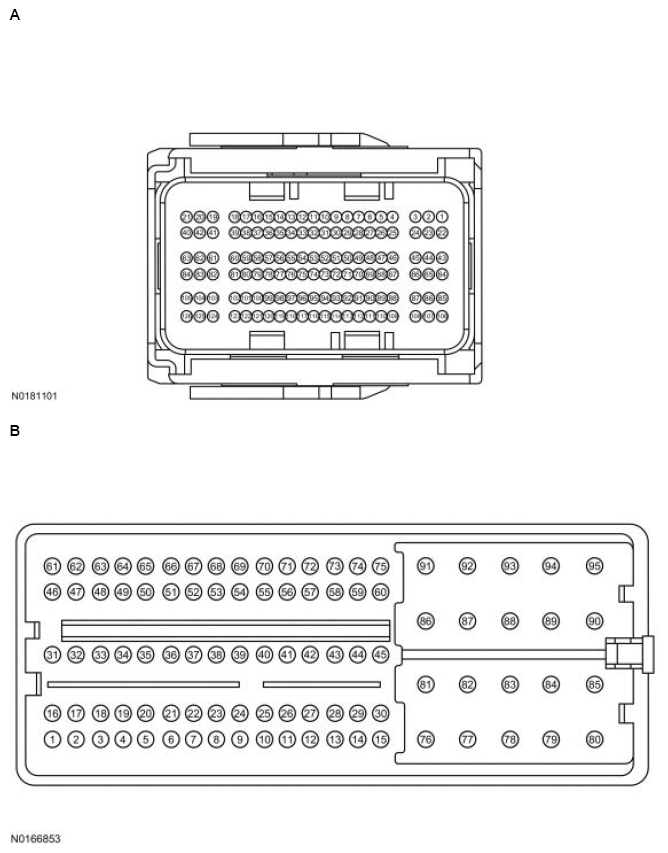

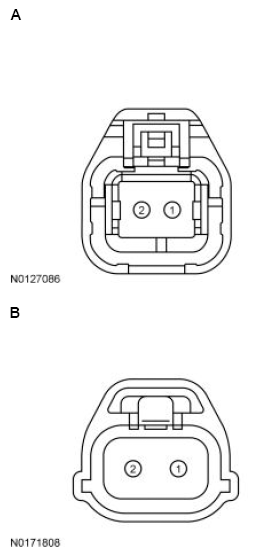

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Transit Connect | A | 1 2 |
GND CVHC |
| F-150 | B | 2 1 |
VPWR CVHC |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-150 | A | 4 | CVHC |
| Transit Connect | B | 61 | CVHC |
