Pinpoint Tests AX: Intake Throttle: Introduction
This pinpoint test is intended to diagnose the following:
- harness circuits: TACM+, TACM-, TP, SIGRTN and VREF
- intake throttle actuator (9E926)
- PCM (12A650)

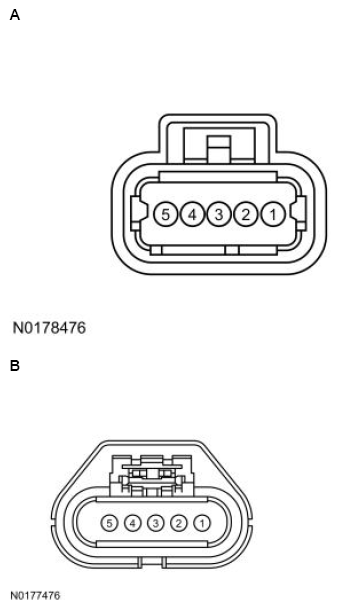

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Transit Connect | A | 2 1 4 3 5 |
TACM- TACM+ TP SIGRTN VREF |
| All other vehicles | B | 2 1 3 4 5 |
TACM- TACM+ TP SIGRTN VREF |

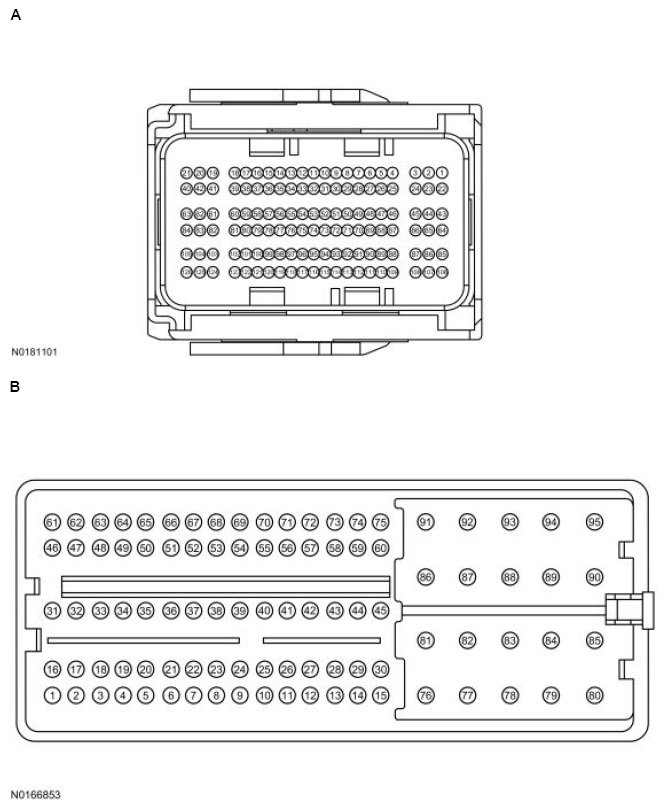

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-150 | A | 24 23 15 |
TACM- TACM+ TP |
| Transit Connect | B | 83 78 56 |
TACM- TACM+ TP |
| All other vehicles | A | 3 2 122 |
TACM- TACM+ TP |
