2021 Ford Escape Titanium Plug-In HybridFACTORY OEM SERVICE PROCEDURE

Image Processing Module A (IPMA) Camera: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

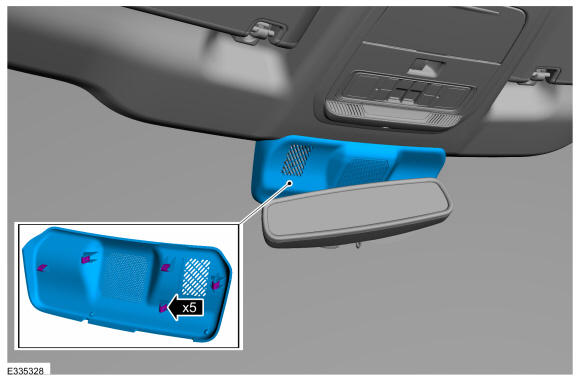

Remove the rain sensor cover.

Courtesy of FORD MOTOR COMPANY

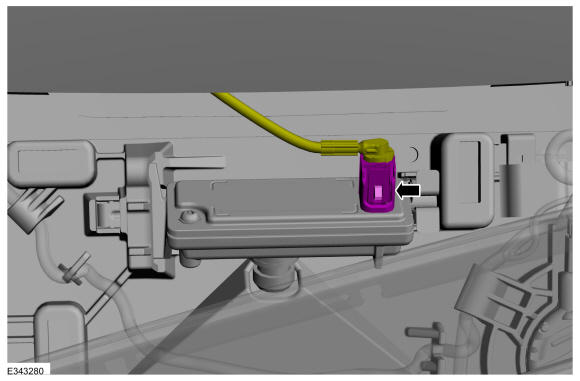

Disconnect the IPMA camera electrical connector.

Courtesy of FORD MOTOR COMPANY

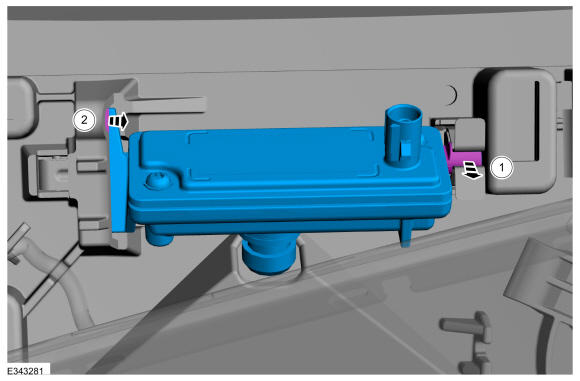

1. Release the tab.
2. Release the tab and remove the IPMA camera.

Courtesy of FORD MOTOR COMPANY
