2021 Ford Escape Titanium Plug-In HybridFACTORY OEM SERVICE PROCEDURE
Anti-Lock Brake System (ABS) Module: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

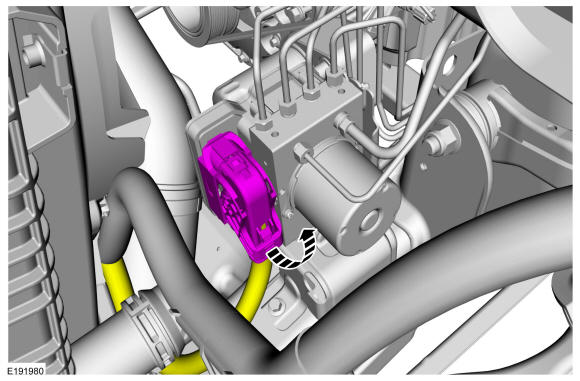

- Disconnect the ABS module electrical connector.
-
NOTE: Make sure the HCU and ABS module are clean and free of any brake fluid or foreign material before separating the components. Do not allow any brake fluid or foreign material to enter the mating side of the ABS module or component damage can occur.

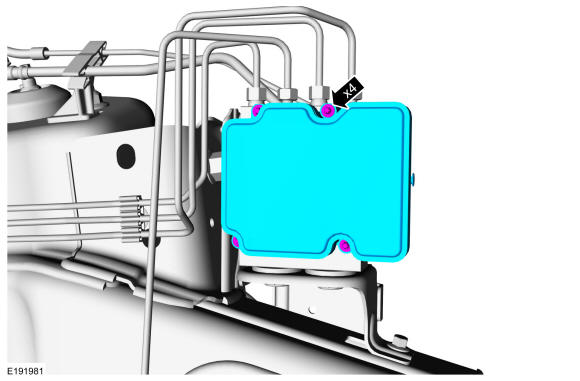

Remove the 4 screws and the ABS module.
Torque
: 27 lb.in (3 Nm)
