WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Transmission Jack

All vehicles

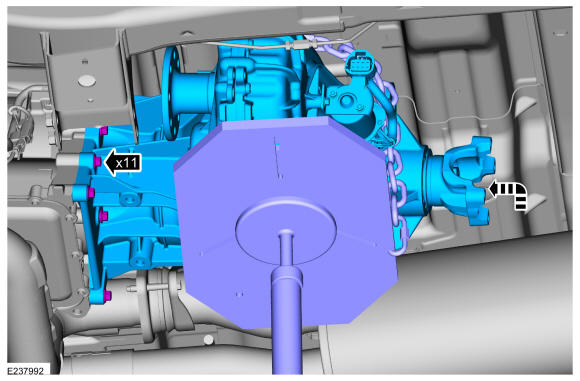

Using a transmission jack, install the transfer case and the transfer case-to-transmission bolts. Use the General Equipment: Transmission Jack
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

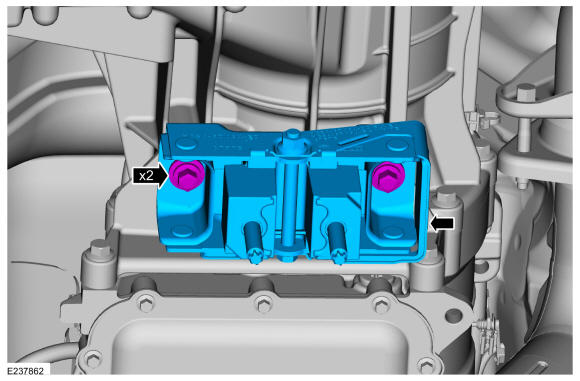

Install the transmission mount and the transmission mount bolts.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

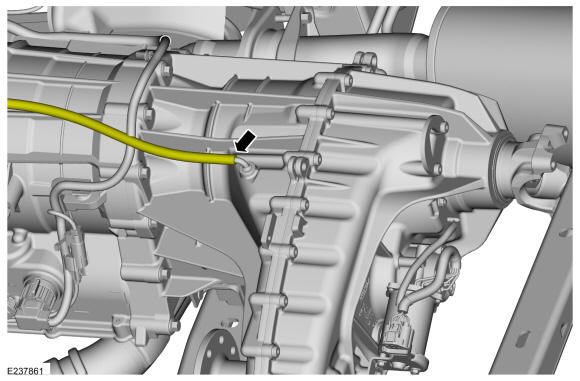

Connect the vent hose from the transfer case.

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with manual shift transfer case

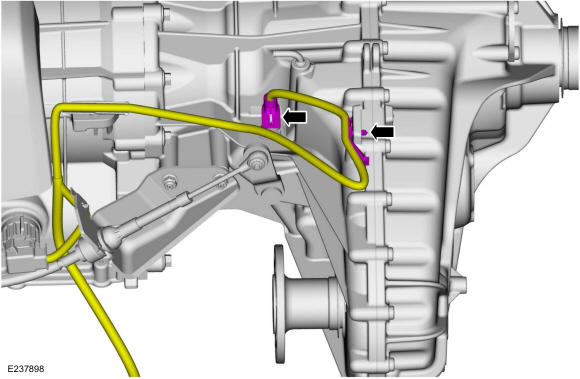

Connect the manual shift indicator harness connector and pushpin.

Courtesy of FORD MOTOR COMPANY
1. NOTE: Confirm clip and cable are fully seated (audible click sound), lightly pull back on the cable.
