2021 Ford Edge ST-Line, FWDFACTORY OEM SERVICE PROCEDURE

Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

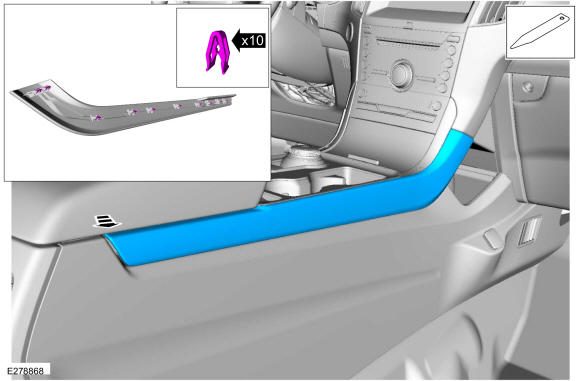

  1. Release the clips and remove the RH floor console finish panel. Use the General Equipment: Interior Trim Remover
    GFD596622Courtesy of FORD MOTOR COMPANY

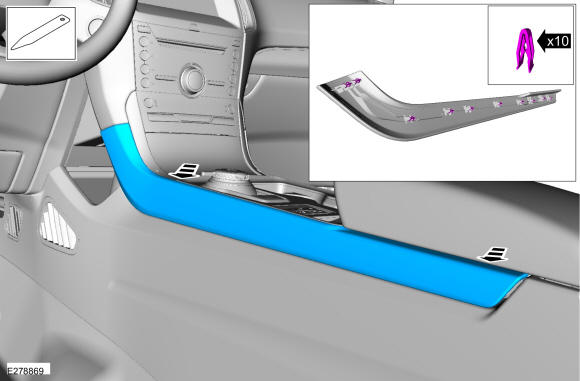

  2. Release the clips, push pin and remove the LH floor console side trim panel. Use the General Equipment: Interior Trim Remover
    GFD596623Courtesy of FORD MOTOR COMPANY

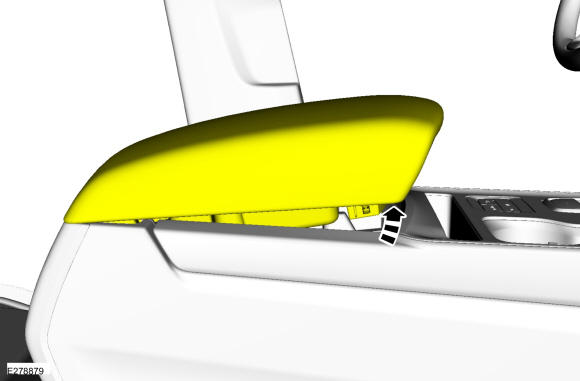

  3. Open floor console armrest.
    GFD596624Courtesy of FORD MOTOR COMPANY

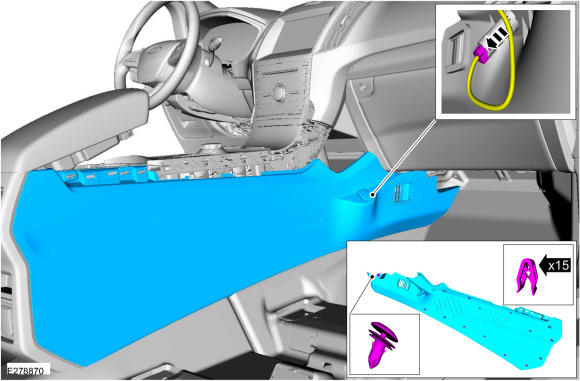

  4. Release the clips, push pin and remove the RH floor console side trim panel.

    • Disconnect the electrical connector.

    GFD596625Courtesy of FORD MOTOR COMPANY

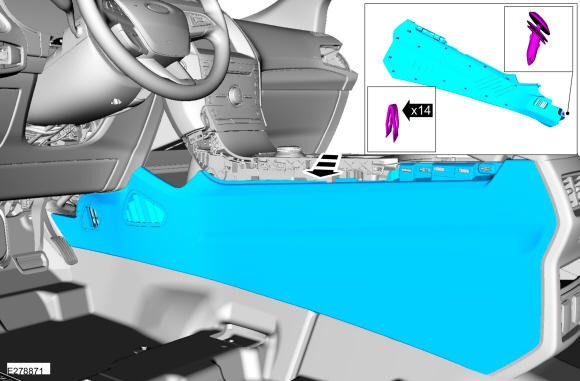

  5. Release the clips, push pin and remove the LH floor console side trim panel.
    GFD596626Courtesy of FORD MOTOR COMPANY

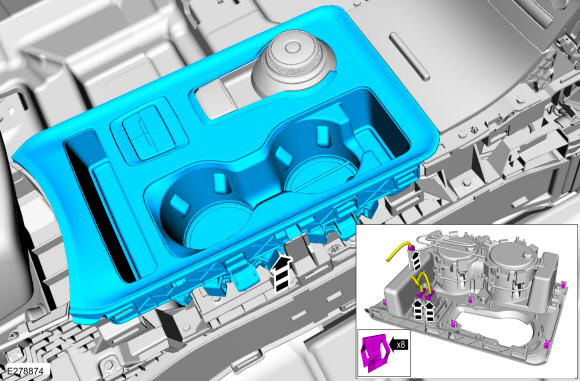

  6. Release the clips and remove the floor console upper trim panel.

    • Disconnect the electrical connectors.

    GFD596627Courtesy of FORD MOTOR COMPANY

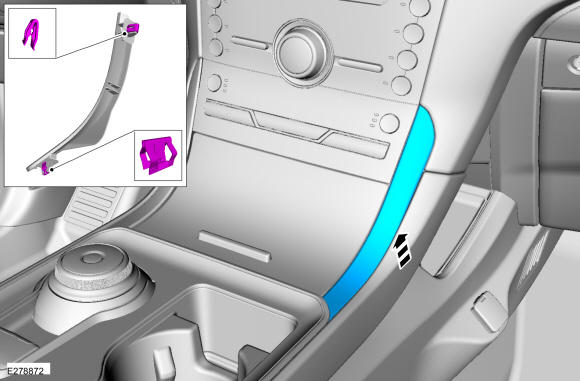

  7. Release the clips and remove the RH finish panel.
    GFD596628Courtesy of FORD MOTOR COMPANY

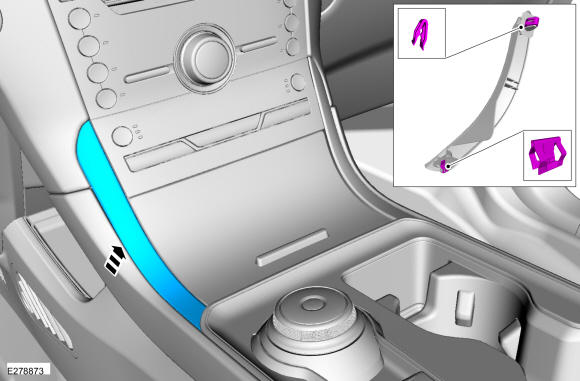

  8. Release the clips and remove the LH finish panel.
    GFD596629Courtesy of FORD MOTOR COMPANY

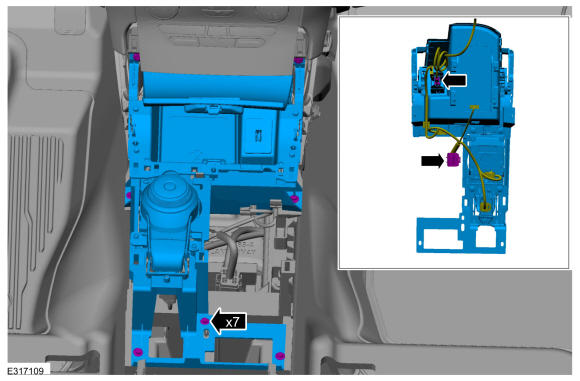

  9. Remove the bolts and the transmission selector bracket.

    • Disconnect the electrical connectors.

    GFD596630Courtesy of FORD MOTOR COMPANY

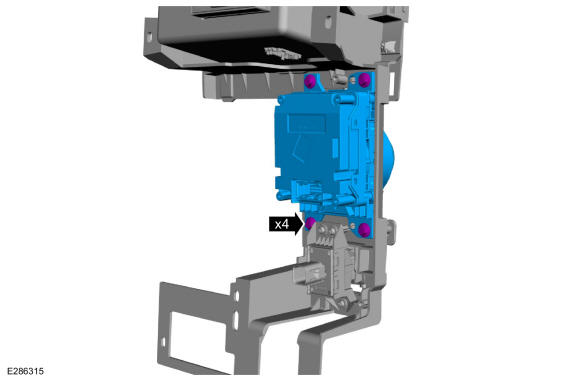

  10. Remove the bolts and the GSM.
GFD596631Courtesy of FORD MOTOR COMPANY
