2021 Ford Edge SE, 4WDFACTORY OEM SERVICE PROCEDURE

Exhaust Gas Recirculation (EGR) System Module: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

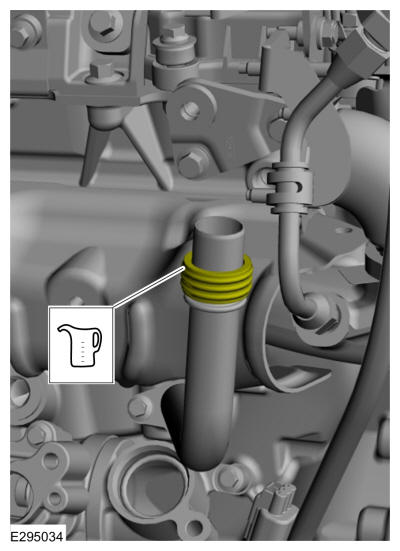

NOTE: Make sure that the mating surfaces are clean and free of foreign material.

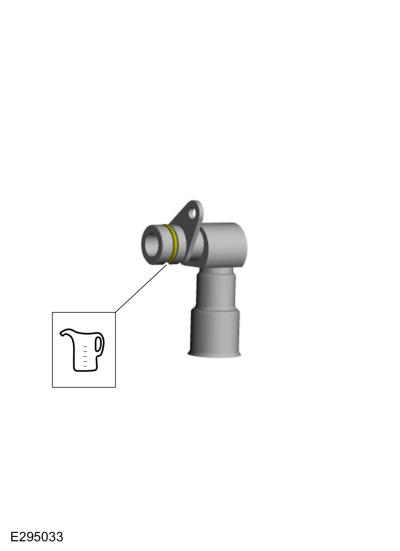

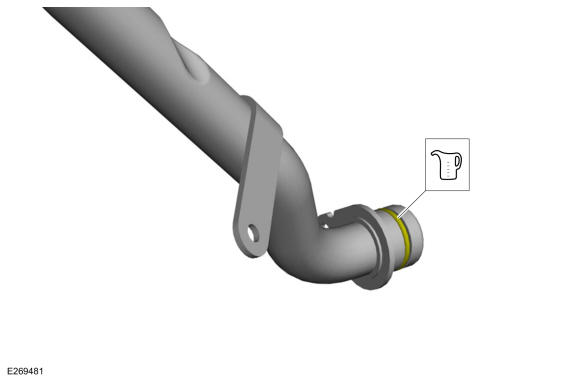

Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

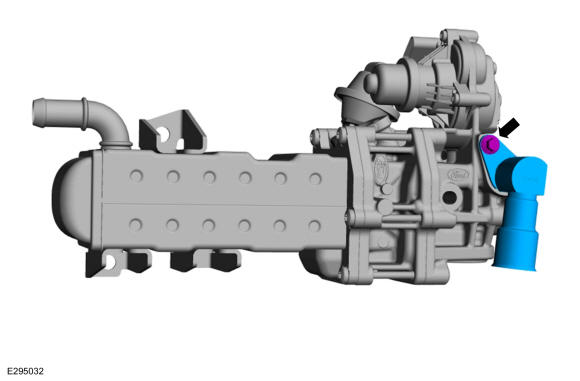

Install the EGR coolant inlet tube and the bolt.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Lubricate the grommet with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

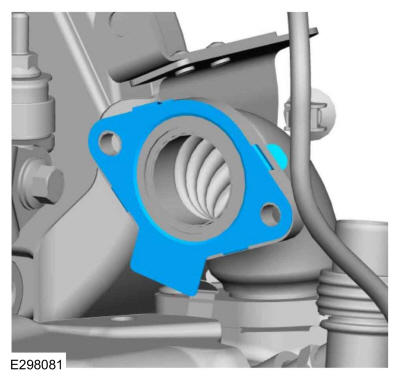

Install a new inlet tube gasket.

Courtesy of FORD MOTOR COMPANY

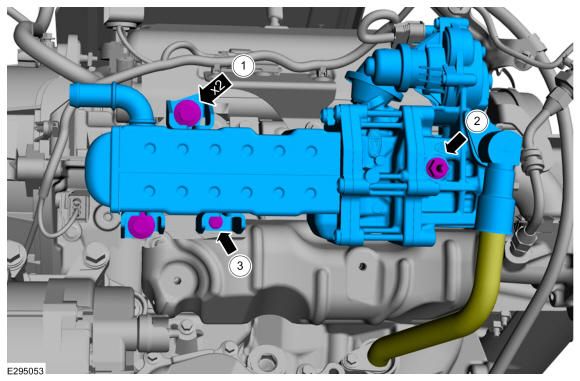

1. Install the EGR cooler assembly and hand tighten the bolts at this stage.
2. Hand tighten the stud bolt at this stage.
3. Hand tighten the bolt at this stage.
Courtesy of FORD MOTOR COMPANY
Install the EGR cooler inlet tube bolts hand tight.

Courtesy of FORD MOTOR COMPANY

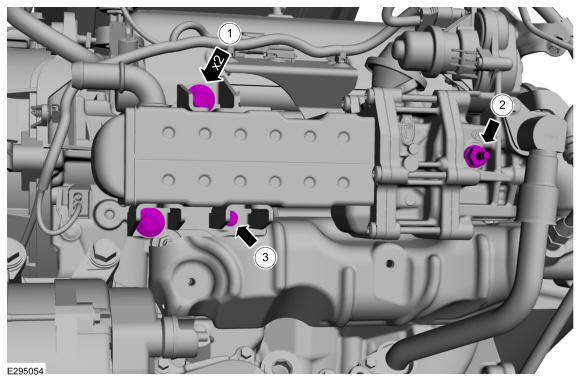

Tighten the bolts and the stud bolt for the EGR cooler assembly.
1. Torque
  : 17 lb.ft (23 Nm)
2. Torque
  : 17 lb.ft (23 Nm)
3. Torque
  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY

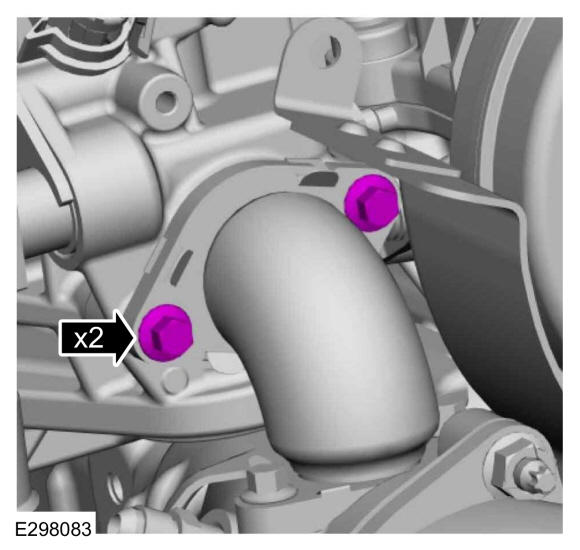

Tighten the EGR cooler inlet tube bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Lubricate the O-ring seal with clean engine coolant. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY

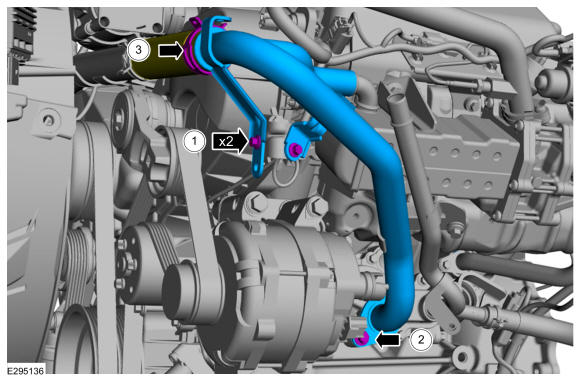

1. Install the coolant bypass tube and bolts.
  Torque

  : 71 lb.in (8 Nm)
2. Install the bolt.
  Torque

  : 18 lb.ft (25 Nm)
3. Position the coolant bypass hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer
Courtesy of FORD MOTOR COMPANY

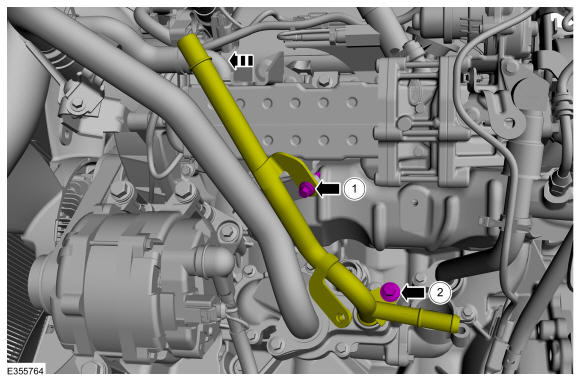

Position back the heater coolant outlet tube.
Torque

: Bolt 1: 71 lb.in (8 Nm) Bolt 2: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

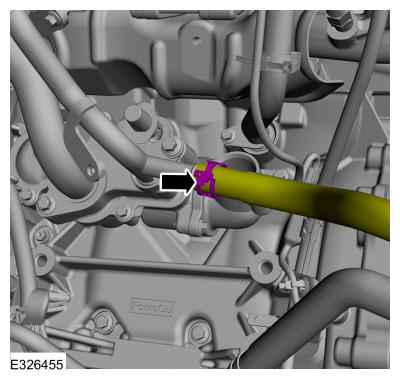

Position back the heater coolant outlet hose. Remove the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

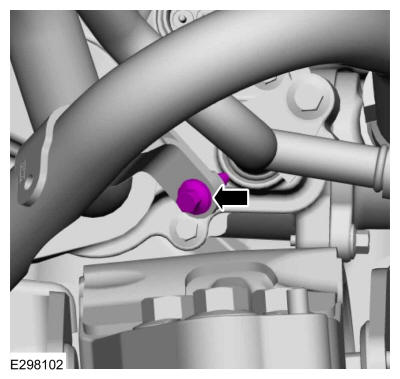

Install the lower radiator coolant tube bolt.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the block heater electrical connector and the retainer.

Courtesy of FORD MOTOR COMPANY

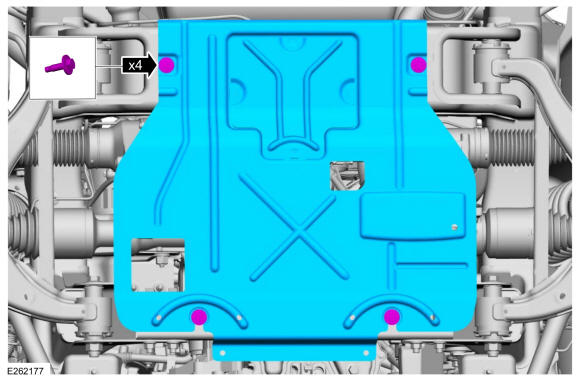

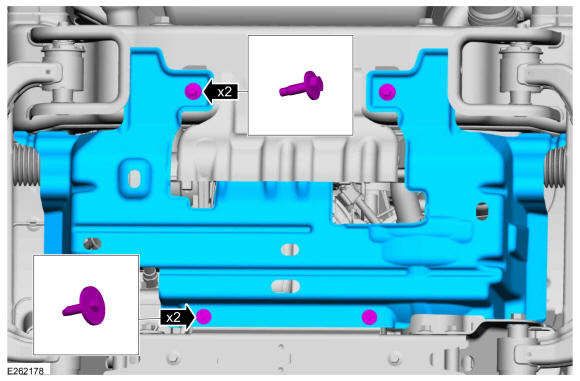

If equipped, install the skid plate and the bolts.
Torque

: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY

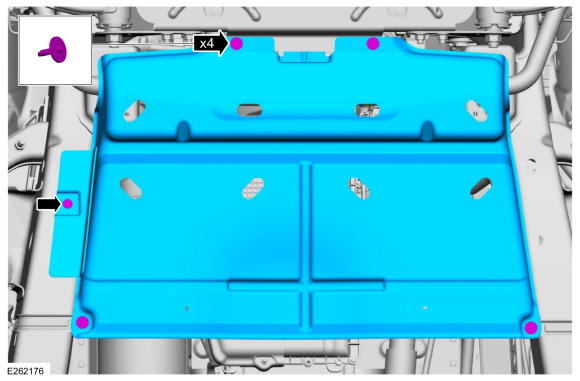

If equipped, install the underbody shield and the bolts.
Torque

: M8 bolt: 30 lb.ft (40 Nm) M6 bolt: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
Install the transmission housing cover and the bolts. Install the pin-type retainer.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

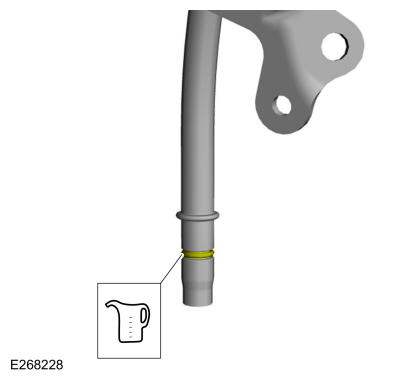

Lubricate the O-ring seal with clean engine oil.
Material

: Motorcraft® SAE 5W-30 F-150 Diesel Motor Oil / XO-5W30-QFA (WSS-M2C214-B1)

Courtesy of FORD MOTOR COMPANY

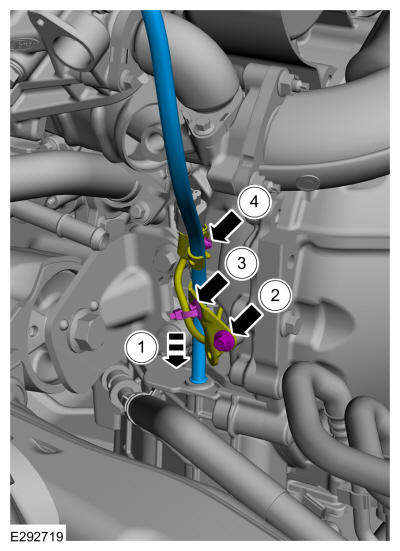

1. NOTE: Make sure the oil level indicator tube is inserted correctly.

  Insert the oil level indicator.
2. Install the fastener.
  Torque

  : 17 lb.ft (23 Nm)
3. Attach the retainer.
4. Attach the retainer.
Courtesy of FORD MOTOR COMPANY

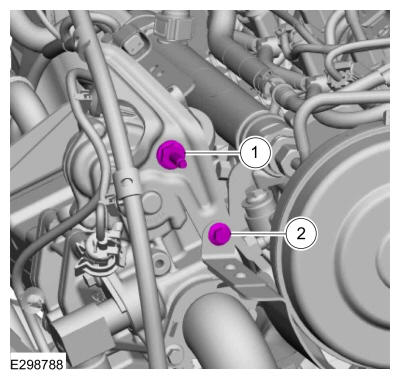

1. Install the stud bolt.
  Torque

  : 89 lb.in (10 Nm)
2. Install the bolt.
  Torque

  : 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
Install the oil level indicator.

Courtesy of FORD MOTOR COMPANY

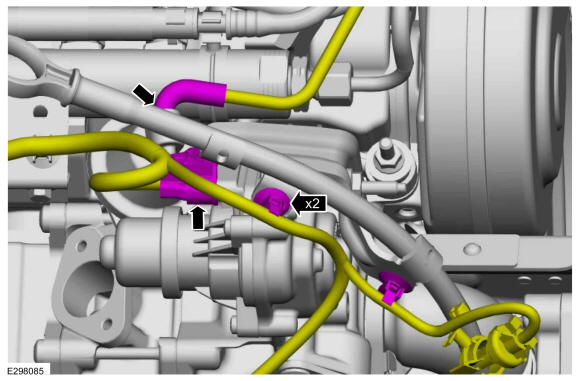

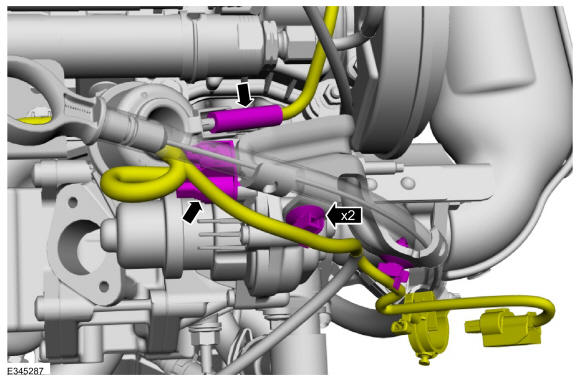

- If equipped, connect the wire retainers to the oil level indicator.
- Connect the electrical connector and the emission system control hose.
Courtesy of FORD MOTOR COMPANY
- If equipped, connect the wire retainers to the oil level indicator.
- Connect the electrical connector and the emission system control hose.
Courtesy of FORD MOTOR COMPANY

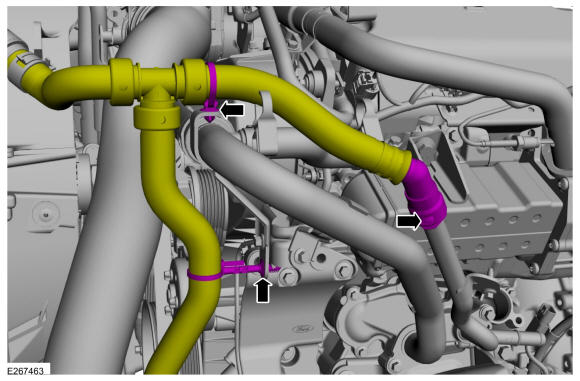

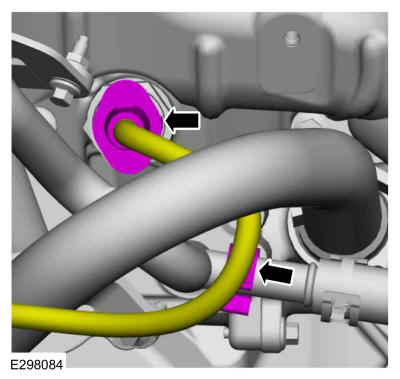

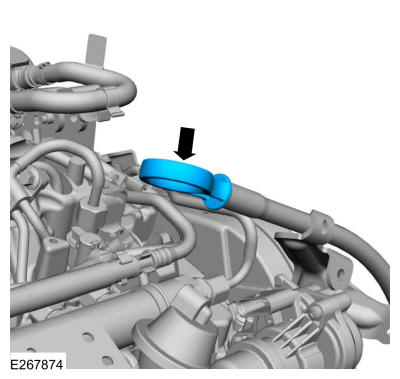

Connect the coolant hose connector and the retainers.

Courtesy of FORD MOTOR COMPANY

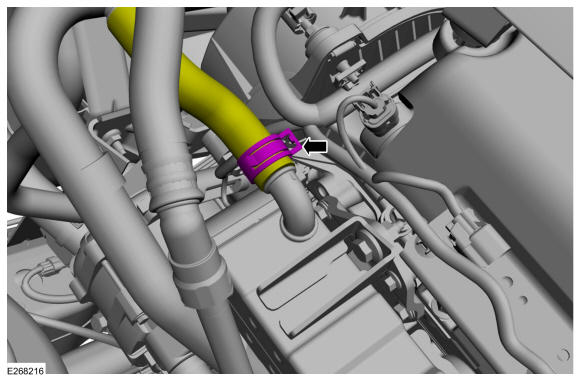

Position back the coolant hose and the clamp. Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

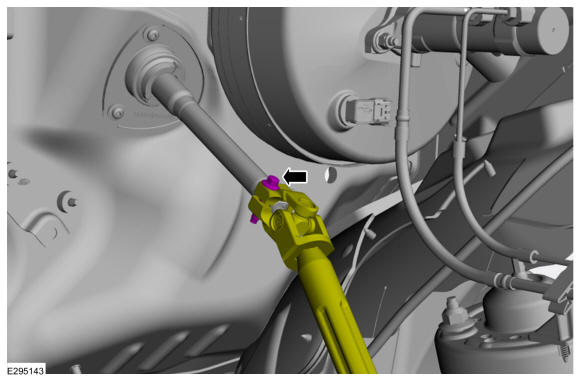

WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

Position back the lower steering shaft and install the new bolt.

Torque

: All models except Raptor: 22 lb.ft (30 Nm) Raptor: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

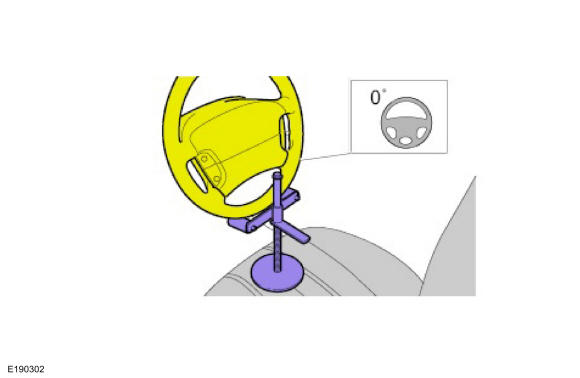

Remove the steering wheel holding tool.

Courtesy of FORD MOTOR COMPANY

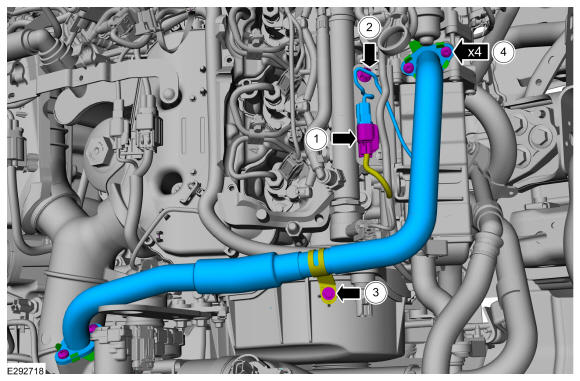

1. Using new gaskets, install the EGR outlet tube and the bolts.
  Torque

  : 89 lb.in (10 Nm)
2. Install the retainer in the timing belt cover.
  Torque

  : 31 lb.in (3.5 Nm)
3. Connect the wire retainers.
4. Connect the EGR temperature sensor electrical connector.
Courtesy of FORD MOTOR COMPANY

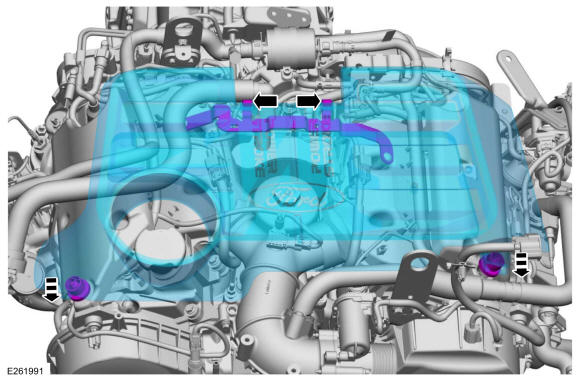

Install the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

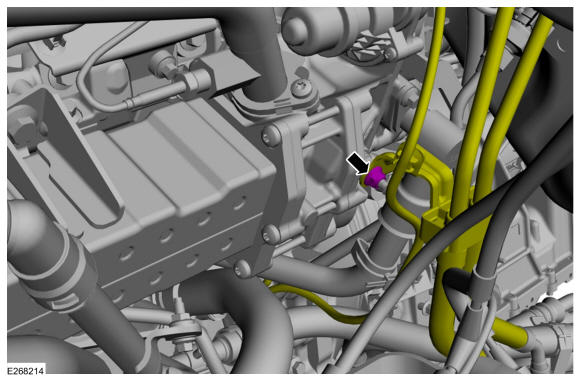

Position the bracket and fuel tube assembly and install the fastener.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the exhaust pressure sensor. Refer to: Exhaust Pressure Sensor .
2. Install the fender splash shield. Refer to: Fender Splash Shield .
3. Install air cleaner. Refer to: Air Cleaner .
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
