2021 Ford Edge SE, 4WDFACTORY OEM SERVICE PROCEDURE

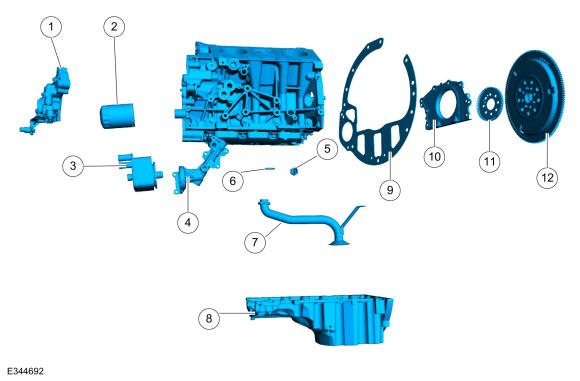

Exploded View Of Lower Engine Block
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6621 | Oil pump |
| 2 | 6714 | Engine oil filter |
| 3 | 6A642 | Oil cooler |
| 4 | 6884 | Oil filter adapter |
| 5 | 9D290 | Oil pressure sensor |
| 6 | 6625 | Oil pump screen and pickup tube O-ring seal |
| 7 | 6622 | Oil pump screen and pickup tube |
| 8 | 6676 | Oil Pan |
| 9 | 6A373 | Engine-to-transmission spacer plate |
| 10 | 6K301 | Crankshaft rear seal retainer |
| 11 | 12A227 | Crankshaft sensor ring |
| 12 | 6477 | Flexplate |
