Pinpoint Tests B: Powertrain Control Module (Pcm) Power Relay: Introduction
This pinpoint test is intended to diagnose the following:
- harness circuits: B+, INJPWRM, ISP-R, PCMRC, and VPWR
- PCM power relay (12A646)
- PCM (12A650)

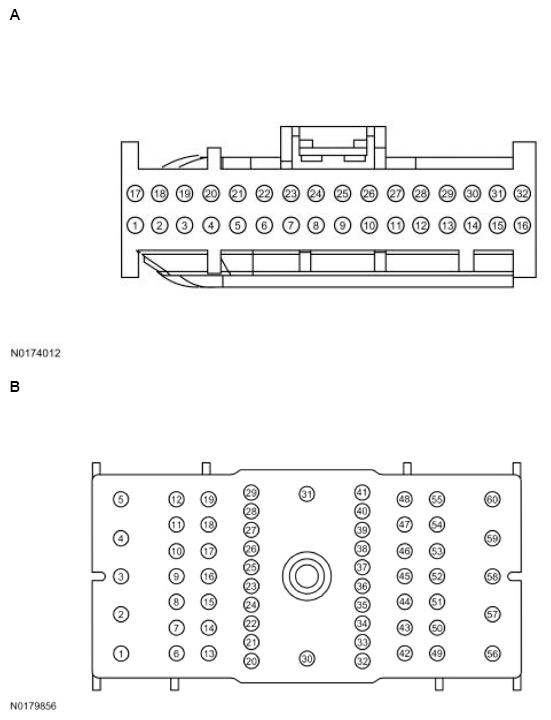

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| F-Series Super Duty | A | 51 39 |
VPWR PCMRC |
| Transit | B | 42 33 |
VPWR PCMRC |

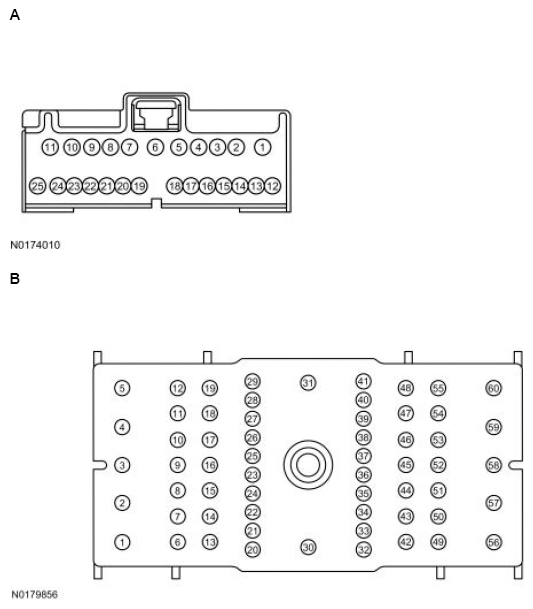

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Aviator, Explorer | A | 50 32 |
VPWR PCMRC |
| Bronco Sport | B | 39 16 |
VPWR PCMRC |
| Corsair | B | 39 46 |
VPWR PCMRC |
| E-Series | B | 32 | VPWR |
| Escape/Kuga | B | 39 44 |
VPWR PCMRC |
| F-150 | A | 46 | VPWR |
| Transit Connect | B | 39 14 |
VPWR PCMRC |

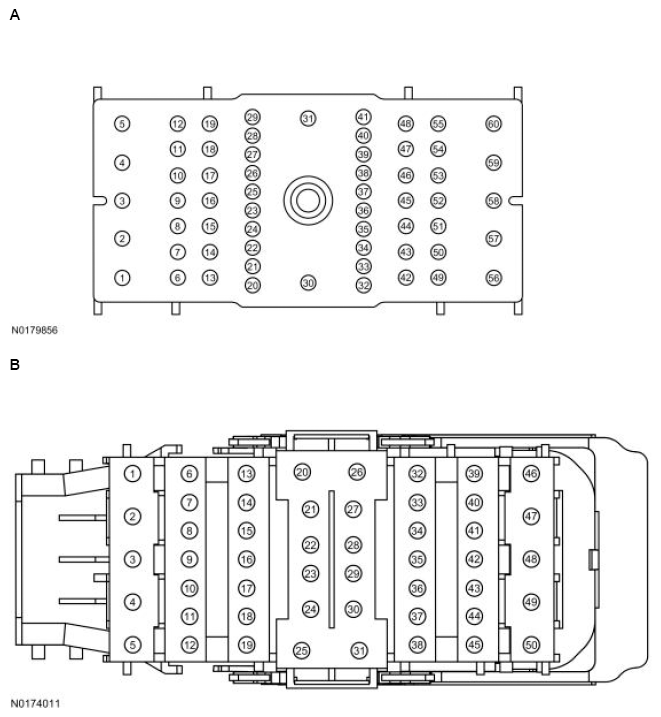

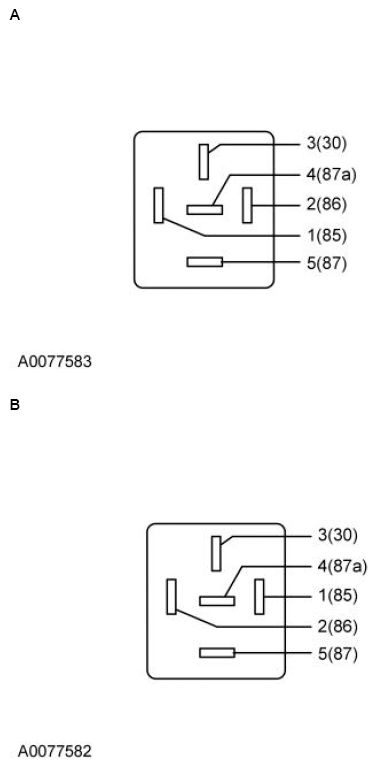

| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| E-Series | A | 18 | PCMRC |
| F-150 | B | 20 | PCMRC |
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Bronco Sport, EcoSport, Escape/Kuga 1.5L, KA | A | 1 | VPWR |
| All other vehicles | A | 2 | VPWR |
