Pinpoint Tests QD: Unable To Activate Transmission Control Module (TCM) Self-Test: Introduction
This pinpoint test is intended to diagnose the following:
- unable to communicate with the TCM
- incorrect self-test procedure
- harness circuits: B+, PWRGND and VPWR

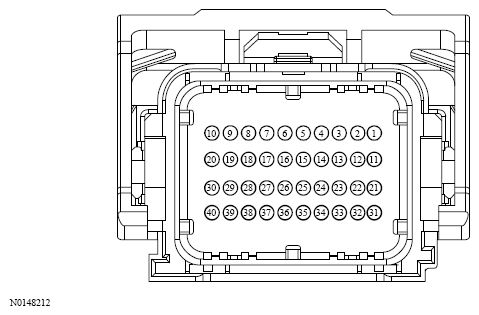

Harness Side
| Circuit | Pin |
|---|---|
| TCMRC (Transmission Control Module Relay Control) | 40 |
| VPWR (Vehicle Power) | 9 |
| VPWR (Vehicle Power) | 10 |
| VPWR (Vehicle Power) | 29 |
| B+ (Battery Positive Voltage) | 6 |
| PWRGND (Power Ground) | 1 |
| PWRGND (Power Ground) | 2 |
