WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 300 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.

This pinpoint test is intended to diagnose the following:

brake pedal position (BPP) switch (13480)
harness circuits: B+, BPP, BPS, SIGRTN
powertrain control module (PCM) (12A650)

Fig 1: Brake Pedal Position (BPP) Switch Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
BPS (Brake Pressure Switch)	2
SIGRTN (Signal Return)	3

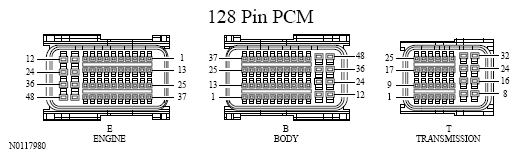

Fig 2: Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.

Harness Side

Circuit	Pin
BPP (Brake Pedal Position)	B2
BPS (Brake Pressure Switch)	B3
SIGRTN (Signal Return)	B39
