2018 Ford Taurus SEL, FWD, GasFACTORY OEM SERVICE PROCEDURE

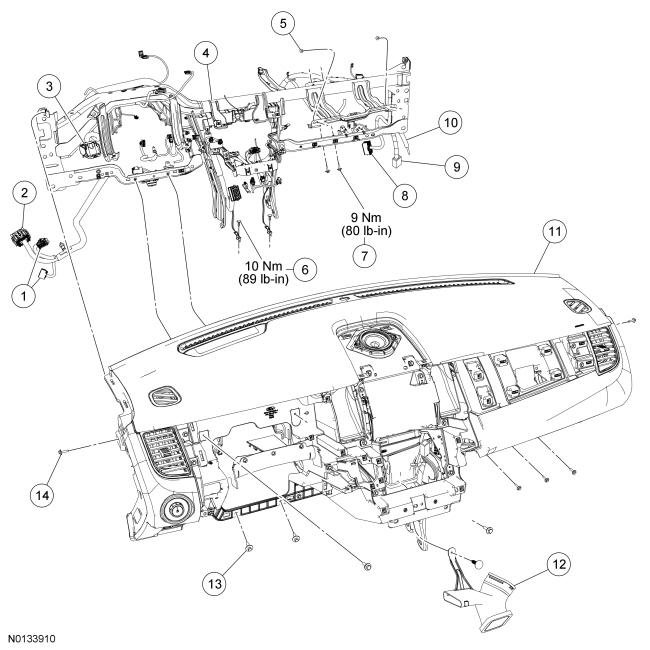

Instrument Panel Upper Section
| Item | Part Number | Description |
|---|---|---|
| 1 | 14401 | Smart Junction Box (SJB) electrical connectors |
| 2 | 14401 | Instrument panel lower LH bulkhead electrical connector |
| 3 | 14401 | Instrument panel upper LH bulkhead electrical connector |
| 4 | 04545 | In-vehicle crossbeam |
| 5 | W707607 | Instrument panel rear screw (2 required) |
| 6 | W706281 | Ground wire bolt |
| 7 | W705583 | Passenger side air bag-to-crossbeam bolt (2 required) |
| 8 | 14401 | Instrument panel RH bulkhead electrical connector |
| 9 | 14401 | Satellite radio connector |
| 10 | 14401 | Antenna cable |
| 11 | 04320 | Instrument panel upper section |
| 12 | 19B680 | Console duct Y adapter |
| 13 | W707628 | Instrument panel front screw (7 required) |
| 14 | W707628 | Instrument panel side screw (2 required) |
