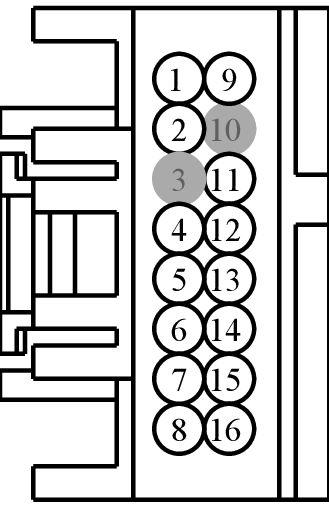

Connector End View (C218B) - CLOCKSPRING
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C218B | CLOCKSPRING | GY | PIA | 14A644 | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * (*) | * | GROUND - INSTRUMENT PANEL STRUCTURE | N/A | ||||
| 2 | * (*) | * | THERMISTOR - HEATED STEERING WHEEL - | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * (*) | * | SWITCH - HORN | N/A | ||||
| 5 | * (*) | * | SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) | N/A | ||||
| 6 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3 | N/A | ||||
| 7 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4 | N/A | ||||
| 8 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT) | N/A | ||||
| 9 | * (*) | * | THERMISTOR - HEATED STEERING WHEEL + | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * (*) | * | CTRL MOD. - IP/SWITCH ILLUMINATION | N/A | ||||
| 12 | * (*) | * | SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) | N/A | ||||
| 13 | * (*) | * | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | N/A | ||||
| 14 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1 | N/A | ||||
| 15 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2 | N/A | ||||
| 16 | * (*) | * | SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT) | N/A | ||||
Available Pigtail Kits

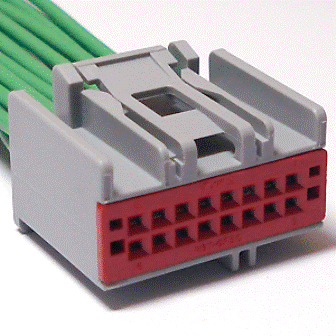

Pigtail Kit Part Number WPT-968
Service Part Number:
3U2Z-14S411-DPB
Gauge:
18
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Module - Reverse Park Aid (RPA)
- Radio
- Switch - Power Window - Driver
- Switch - Reverse Park Aid

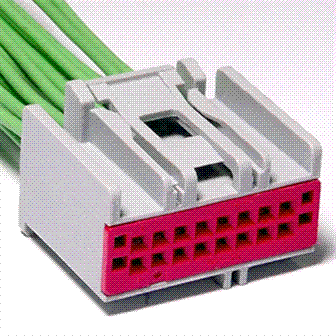

Pigtail Kit Part Number WPT-1582
Service Part Number:
3U2Z-14S411-DPC
Gauge:
20
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
- Control - Navigation Display
- Module - Body Control
- Module - Reverse Park Aid (RPA)
- Radio
- Switch - Power Window - Driver
- Switch - Reverse Park Aid
