Disassembly And Assembly Of Subassemblies: Piston: Assembly
-

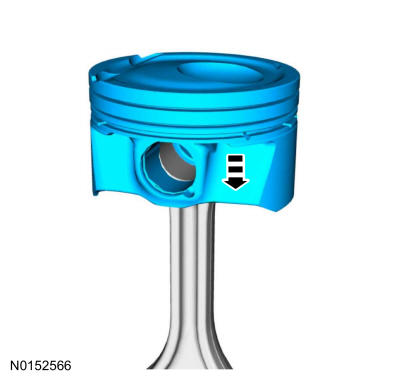

NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.
Install the piston to the connecting rod.

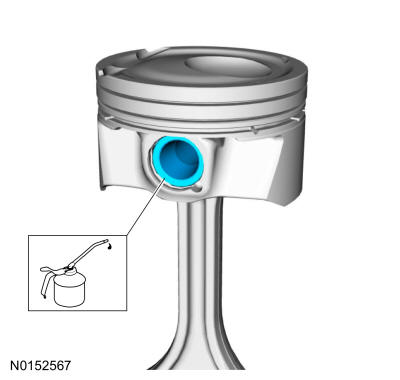

- Lubricate with clean engine oil and install the piston pin.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

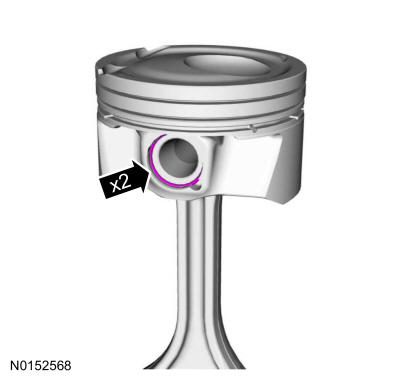

- Install new piston pin retainers.

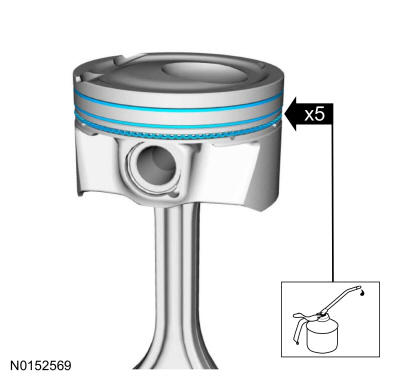

- Lubricate with clean engine oil and install new piston rings.
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
-

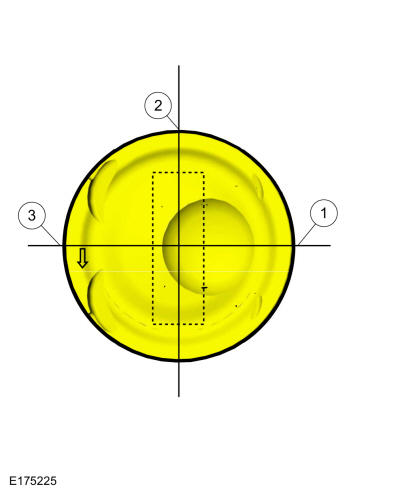

NOTE: Align the piston rings on the piston.
- Upper oil control segment ring gap location.
- Oil control spacer gap location.
- Lower oil control segment ring gap location.
