Transfer Case
-
NOTE: The help of an assistant will be required.

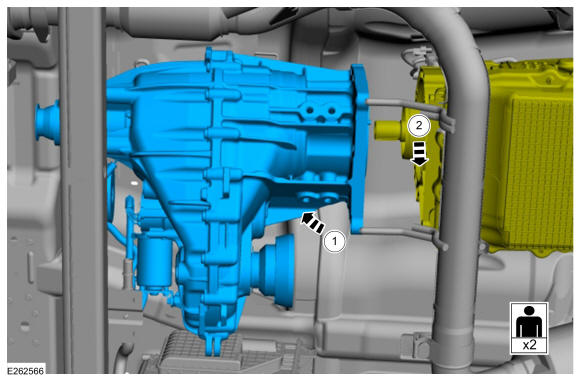

Position the transfer case on the crossmember. Lower the transmission approximately 25.4 mm (1 in).
-
NOTE: The help of an assistant will be required.

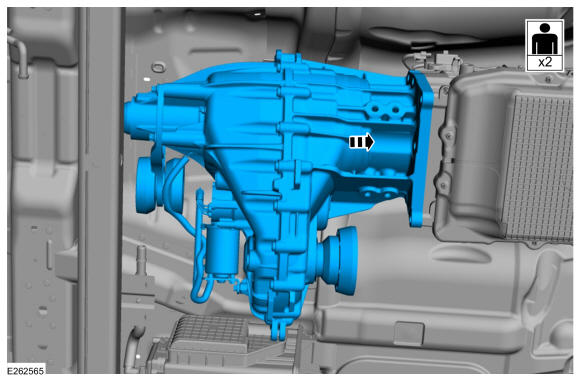

Position the transfer case to the transmission and onto the output shaft.

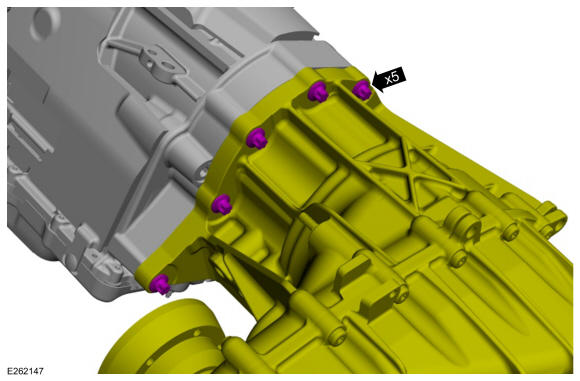

- Install new transfer case-to-transmission bolts.
Torque
: 168 lb.in (19 Nm)

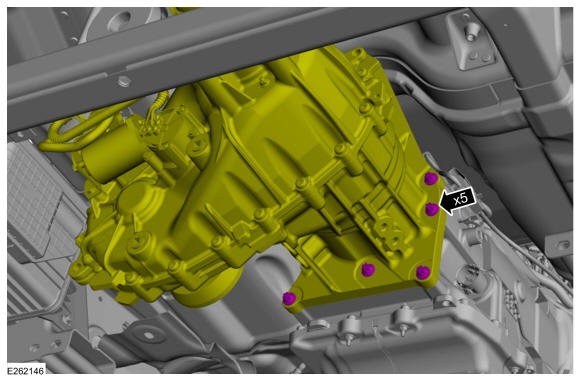

- Install new transfer case-to-transmission bolts.
Torque
: 168 lb.in (19 Nm)
- Refer to: Transmission Support Insulator .
- Install the LH exhaust support bracket and bolt.
Torque: 41 lb.ft (55 Nm)
- Install the transmission support crossmember. Refer to: Transmission Support Crossmember .

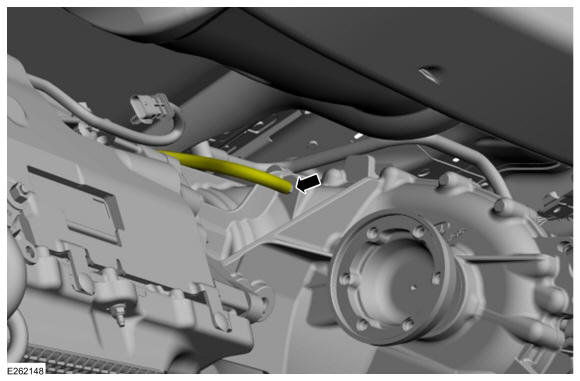

- Connect the vent hose to the transfer case.
Vehicles With: 1-Speed Torque On Demand Transfer Case

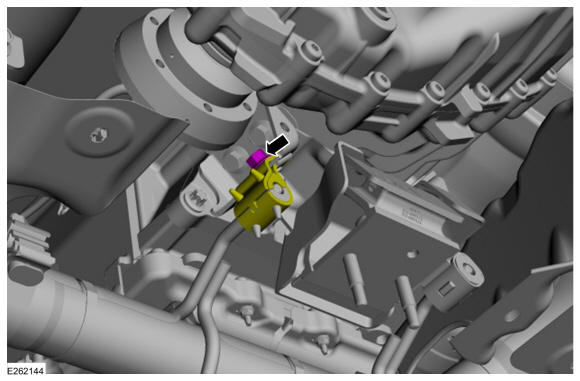

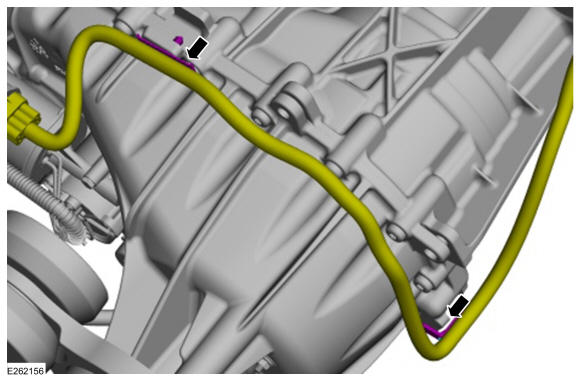

- Connect the electrical connector and attach the harness retainer clip from the transfer case.
Vehicles With: 2-Speed Torque On Demand Transfer Case

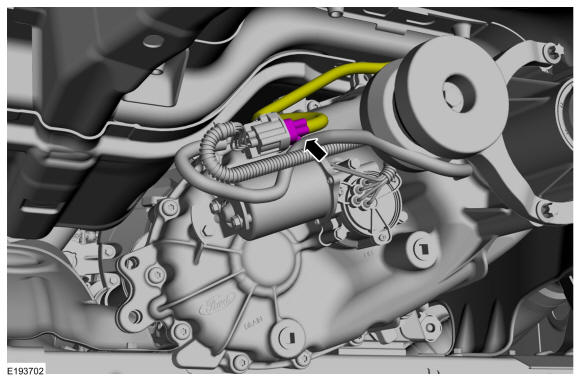

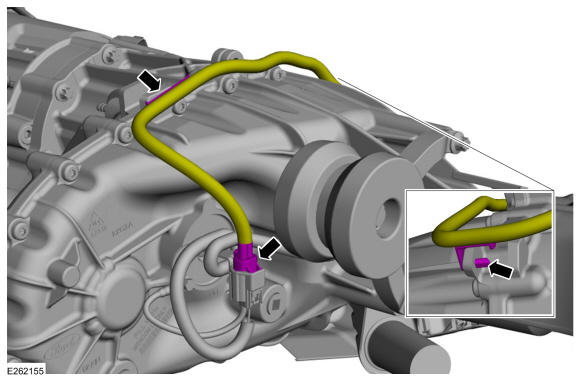

- Connect the shift motor electrical connector.
- Connect the shift motor electrical connector.
All vehicles
-
NOTE: Align the index marks made during removal.
Refer to: Front Driveshaft .
-
NOTE: Align the index marks made during removal.
Refer to: Rear Driveshaft .
- Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

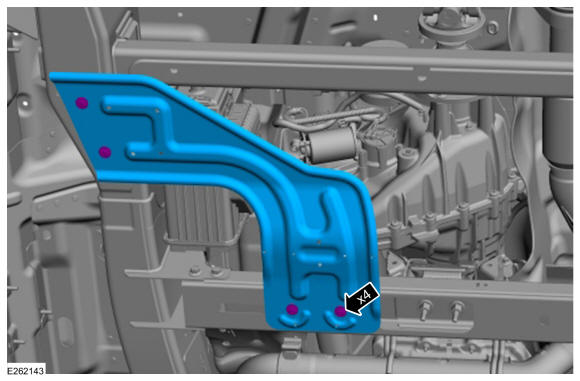

- If equipped. Position the skid plate and install the skid plate bolts.
Torque: 30 lb.ft (40 Nm)
