Main Control Valve Body: Installation

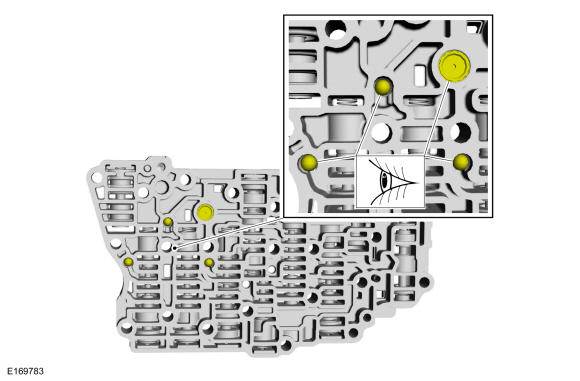

- Verify the check balls and the solenoid damper are in place.
-
NOTE: Make sure that a new component is installed.

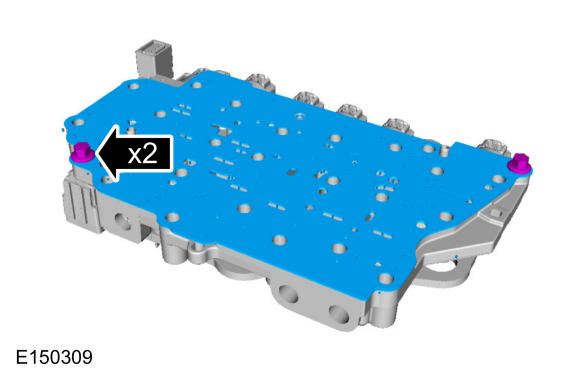

Install the solenoid body-to-valve body separator plate.
Torque: 89 lb.in (10 Nm)
-

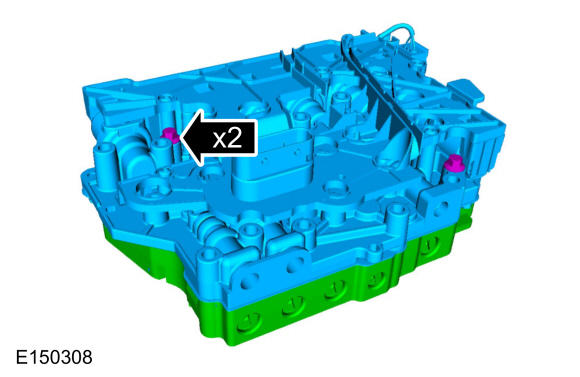

- Install the main control valve body. And install the solenoid body and transmission internal wiring harness frame assembly.
- Install the solenoid body-to-valve body bolt.
Torque: 89 lb.in (10 Nm)
-
NOTE: Make sure that the component is correctly located on the locating dowels.
