Main Control Valve Body
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Special Tool(s) / General Equipment
| 307-636 Alignment Pins- Valve Body TKIT-2008ET-FLM TKIT-2008ET-ROW | |
|---|---|
| Flat Headed Screw Driver | |
| Magnetic Socket | |
| Long Nose Pliers |
Main Control Valve Body and Solenoid Body

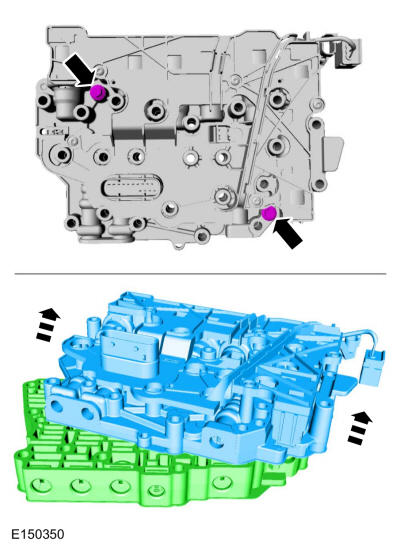

- Remove the solenoid body-to-valve body bolts and separate the solenoid body from the valve body.

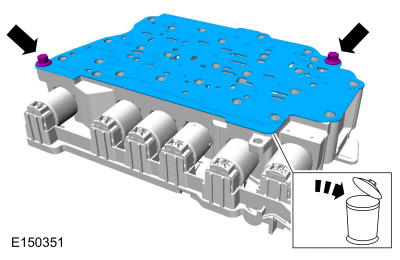

- Remove the separator plate-to-solenoid body bolts and remove and discard the separator plate.
Main Control Valve Body

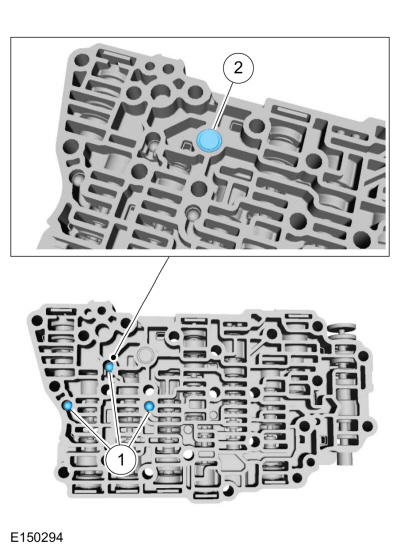

- Remove the check balls and the damper.
- Check balls
- Solenoid damper

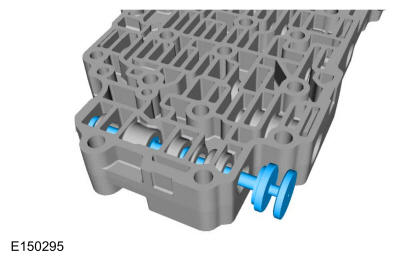

- Remove the manual valve.
-
NOTE: Remove the valves by tapping the valve body on the palm of the hand to slide the valves out of the bores or by threading a 4-mm bolt into the valves and pulling them out. If it is necessary to use a pick, use extreme caution to prevent damaging the valves or valve bores. If necessary, disassemble parts of the main control valve body in small groups. Arrange the parts as they are removed to avoid mixing similar pieces.
