Transmission Identification

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

1. • Using the scan tool, select Powertrain, Transmission and Transmission Characterization / Solenoid IDN from the toolbox icon and follow the instructions displayed on the scan tool. The Transmission Characterization / Solenoid IDN screen displays solenoid body identification information:
   • Solenoid body identification is a 7-digit number
   • Solenoid body strategy is a 13-digit number. If the solenoid body strategy field is blank, the module contains a partial transmission solenoid body strategy. This is due to a corrupt or missing file at the time the programmable parameters were completed.
   • Original Solenoid Body Service Tag

2. NOTE: The 13-digit solenoid body strategy number consists of only numbers. Letters are not used.

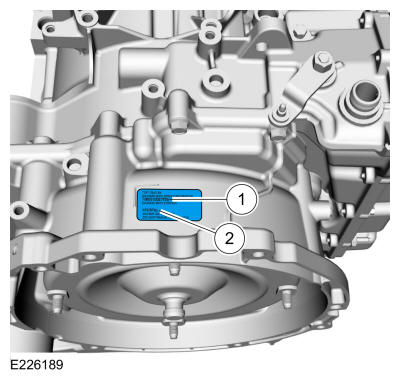

   • Compare the solenoid body identification and strategy (if available) to the solenoid body original service tag located on top of the transmission case.
   1. 13 - digit solenoid body strategy
   2. 7 - digit solenoid body identification

   Courtesy of FORD MOTOR COMPANY

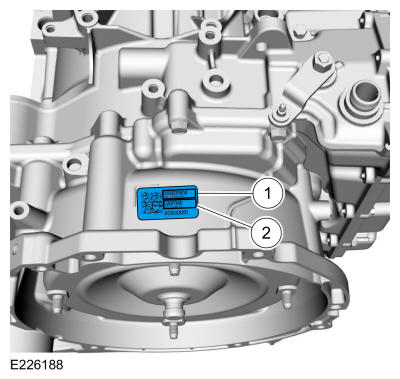

   • Replacement Solenoid Body Service Tag

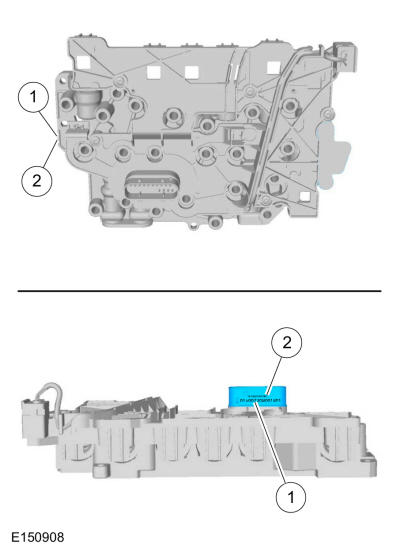

3. • If the solenoid body identification and strategy on the scan tool match the solenoid body service tag or replacement tag, then the solenoid body identification and strategy are correct for this transmission and a solenoid body strategy download is not required. If the solenoid body service tag or replacement tag is missing or damaged so its not readable or does not match the identification or strategy on the scan tool, remove the solenoid body connector and view the solenoid body identification and strategy printed on the solenoid body connector. If its not readable, remove the main control cover. The 7-digit identification number and the 13-digit strategy number are stamped on the solenoid body.
   1. 13 - digit solenoid body strategy
   2. 7 - digit solenoid body identification

   Courtesy of FORD MOTOR COMPANY

   • Solenoid Body Identification Tag

4. NOTE: If the solenoid body information does not match the module information, transmission damage or driveability concerns can occur.
   • Inspect the solenoid body identification and strategy printed on the solenoid body connector and compare this to the solenoid body service tag on the transmission case. If the solenoid body identification and strategy printed on the solenoid body connector does not match the solenoid body service tag or if the solenoid body identification and strategy printed on the solenoid body connector match the solenoid body service tag on the transmission case but do not match the solenoid body identification and strategy numbers displayed on the scan tool, a solenoid body strategy data download is required.
   1. 13 - digit solenoid body strategy
   2. 7 - digit solenoid body identification
