Selector Lever Cable Adjustment
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Adjustment

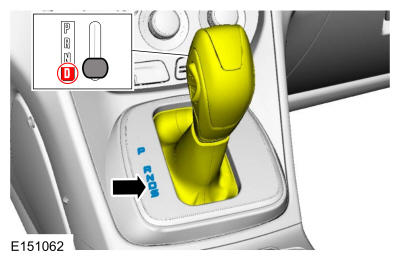

- Position the selector lever in D.
- Remove the air cleaner. Refer to: Air Cleaner .

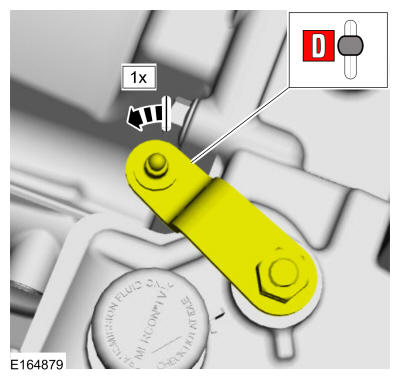

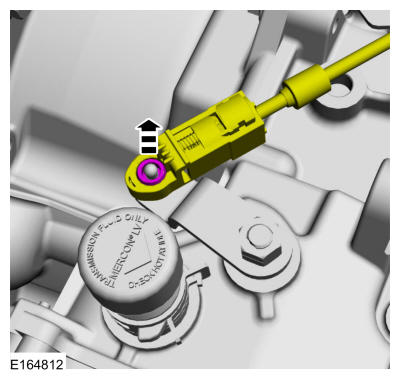

- Disconnect the selector lever cable end from the manual control lever.

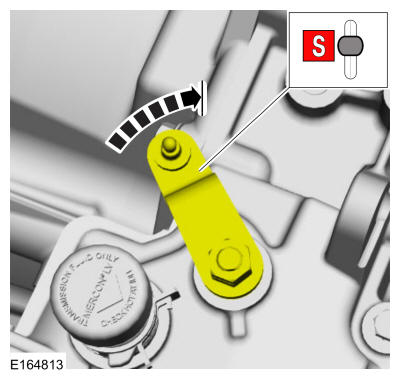

- Rotate the manual control lever clockwise until it stops.
- Rotate the manual control lever counterclockwise 1 detent into D.
- Release the selector lever cable adjuster lock.

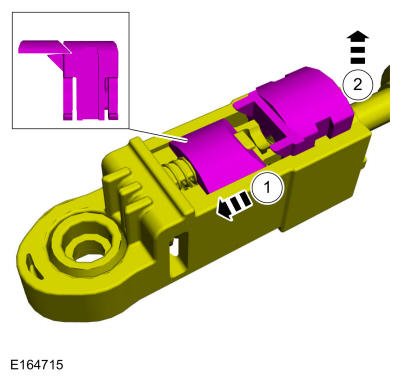

- Carefully pry the adjuster lock tabs outward.
- While holding the adjuster lock tabs outward, slide the lock out to unlock the selector lever cable.

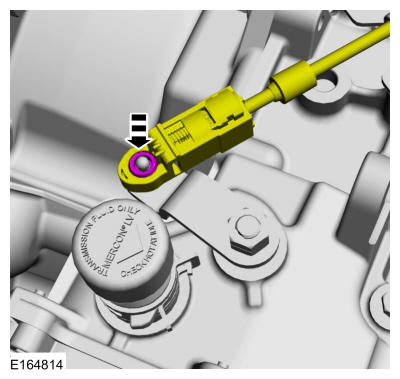

- Connect the selector lever cable to the manual control lever.

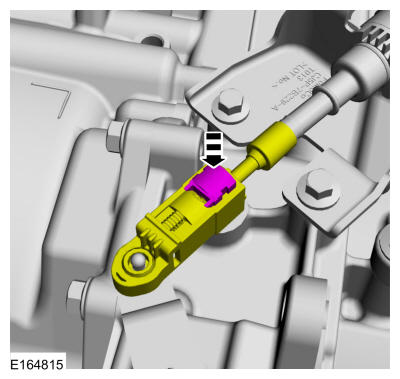

- Slide the adjuster tab in place to lock the selector lever cable.
- Install the air cleaner. Refer to: Air Cleaner .
- Verify the engine starts only in park (P) and neutral (N) and the reverse lamps illuminate only in reverse (R).
