2017 Ford Fusion Energi TitaniumFACTORY OEM SERVICE PROCEDURE
Pinpoint Tests FD: Brake Pedal Inputs: Introduction
WARNING:
TO PREVENT THE RISK OF HIGH-VOLTAGE SHOCK, ALWAYS FOLLOW PRECISELY ALL WARNINGS AND SERVICE INSTRUCTIONS, INCLUDING INSTRUCTIONS TO DEPOWER THE SYSTEM. THE HIGH-VOLTAGE SYSTEM UTILIZES APPROXIMATELY 300 VOLTS DC, PROVIDED THROUGH HIGH-VOLTAGE CABLES TO ITS COMPONENTS AND MODULES. THE HIGH-VOLTAGE CABLES AND WIRING ARE IDENTIFIED BY ORANGE HARNESS TAPE OR ORANGE WIRE COVERING. ALL HIGH-VOLTAGE COMPONENTS ARE MARKED WITH HIGH-VOLTAGE WARNING LABELS WITH A HIGH-VOLTAGE SYMBOL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.
This pinpoint test is intended to diagnose the following:
- brake pedal position (BPP) switch (13480)
- harness circuits: B+, BPP, BPS, SIGRTN
- powertrain control module (PCM) (12A650)
| Pin | Circuit |
|---|---|
| 3 | SIGRTN (Signal Return) |
| 2 | BPS (Brake Pressure Switch) |

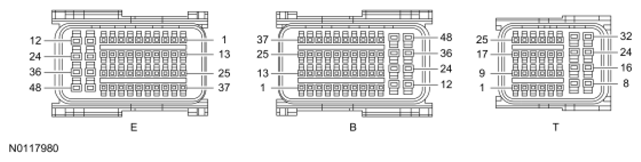

| Pin | Circuit |
|---|---|
| B39 | SIGRTN (Signal Return) |
| B3 | BPS (Brake Pressure Switch) |
| B2 | BPP (Brake Pedal Position) |
