2017 Ford Expedition SSV, RWDFACTORY OEM SERVICE PROCEDURE

Removal And Installation

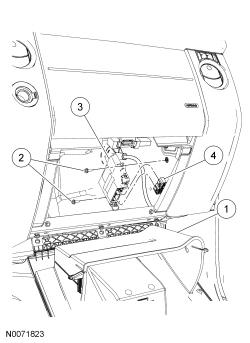

GFD136462Courtesy of FORD MOTOR COMPANY
Item Part Number Description
1 06010 Glove compartment assembly
2 W712524 Screws
3 7H417 4X4 control module
4 - Connector (part of 12A581)

  1. 1.

    Lower the glove compartment assembly to gain access.

  1. 2.

    Remove the central junction box cover.

  1. 3.

    Remove the two 4X4 control module screws.

  1. 4.

    Disconnect the electrical connectors.

  1. 5.

    Remove the 4X4 control module.

  1. 6.

    To install, reverse the removal procedure.
