2016 Ford Transit Connect TitaniumFACTORY OEM SERVICE PROCEDURE

Selector Lever Cable Adjustment

Adjustment

  1. 1.

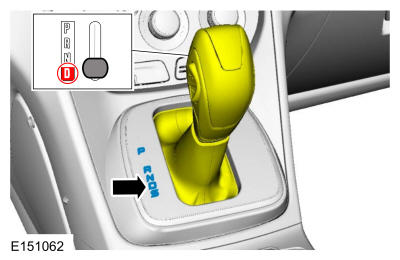

    Position the selector lever in D.
GFD150321Courtesy of FORD MOTOR COMPANY

  1. 2.

    Remove the air cleaner. Refer to: Air Cleaner - 1.6L . Refer to: Air Cleaner - 2.5L .

  1. 3.

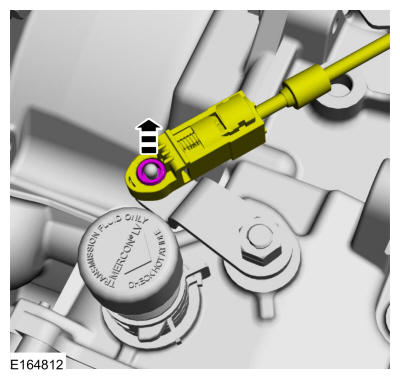

    Disconnect the selector lever cable end from the manual control lever.
GFD150322Courtesy of FORD MOTOR COMPANY

  1. 4.

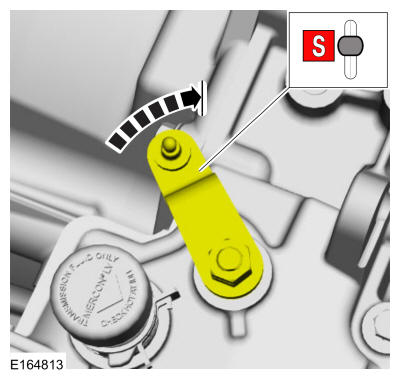

    Rotate the manual control lever clockwise until it stops.
GFD150323Courtesy of FORD MOTOR COMPANY

  1. 5.

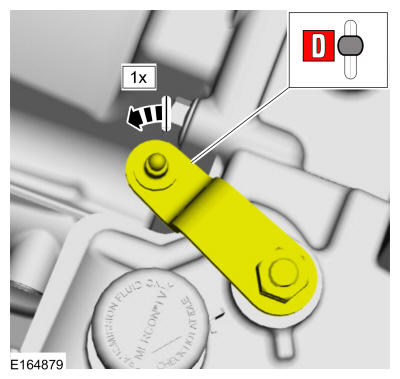

    Rotate the manual control lever counterclockwise 1 detent into D.
GFD150324Courtesy of FORD MOTOR COMPANY

  1. 6.

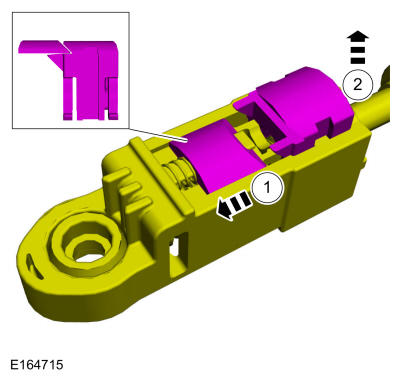

    Release the selector lever cable adjuster lock.

    1. 1.

      Carefully pry the adjuster lock tabs outward.

    1. 2.

      While holding the adjuster lock tabs outward, slide the lock out to unlock the selector lever cable.
GFD150325Courtesy of FORD MOTOR COMPANY

  1. 7.

    Connect the selector lever cable to the manual control lever.
GFD150326Courtesy of FORD MOTOR COMPANY

  1. 8.

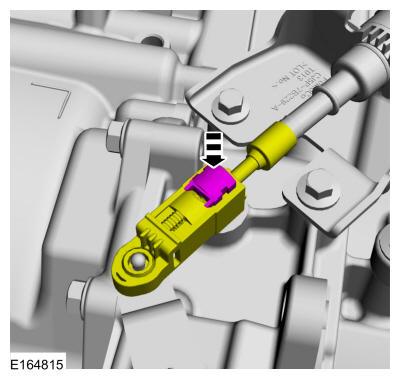

    Slide the adjuster tab in place to lock the selector lever cable.
GFD150327Courtesy of FORD MOTOR COMPANY

  1. 9.

    Install the air cleaner. Refer to: Air Cleaner - 1.6L . Refer to: Air Cleaner - 2.5L .

  1. 10.

    Verify the engine starts only in park (P) and neutral (N) and the reverse lamps illuminate only in reverse (R).
