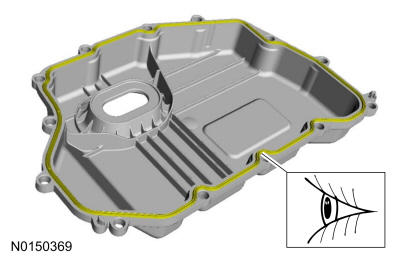

Main Control Cover: Installation
- 2.NOTE: Install the studbolts in the locations noted during removal.

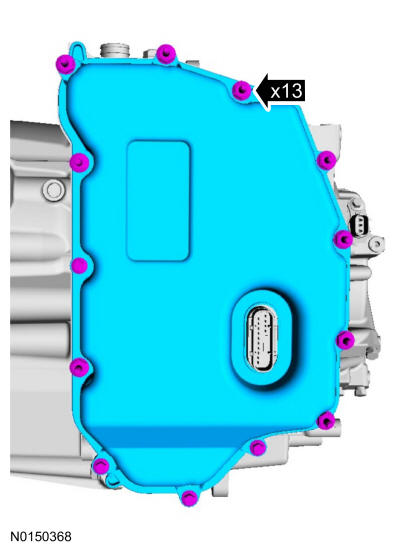

Install the main control cover and the fasteners.
Torque
: 106 lb.in (12 Nm)
1.6L
- 4.

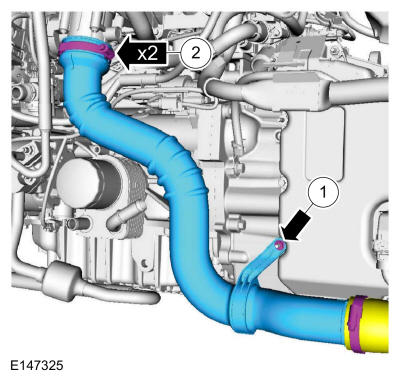

Install the CAC tube.- 1.
Install the CAC tube and nut.Torque
: 89 lb.in (10 Nm)
- 2.

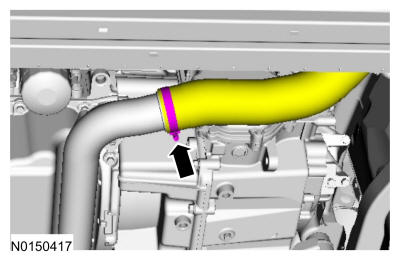

Tighten the clamps.Torque
: 44 lb.in (5 Nm)
- 1.
- 5.
- 1.

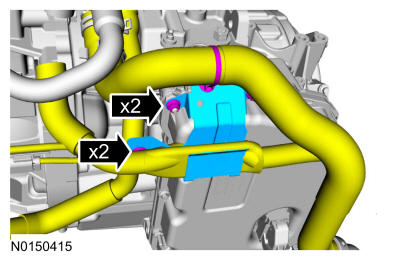

Install the bracket and the nuts.Torque
: 80 lb.in (9 Nm)
- 2.

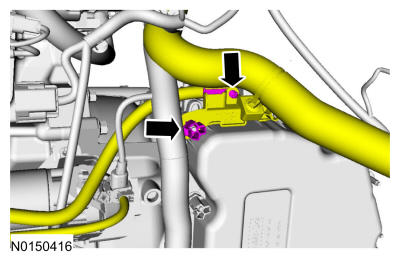

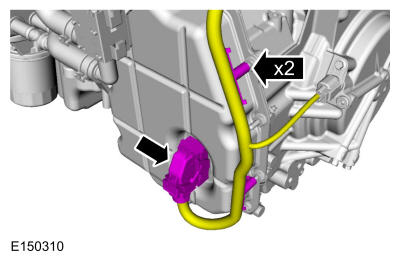

Position the coolant hose, wiring harness and attach the coolant hose retainer, the wiring harness retainers.
- 1.
2.0L
2.0L/2.5L
All vehicles
- 8.
Install the air cleaner. REFER to: Air Cleaner 1.6L Ecoboost Refer to: Air Cleaner 2.0 L Ecoboost Refer to: Air Cleaner 2.5L Duratec
- 9.
Fill the transmission with transmission fluid. REFER to: Transmission Fluid Drain and Refill
Refer to: Engine Front Undershield
