Main Control Valve Body: Notes

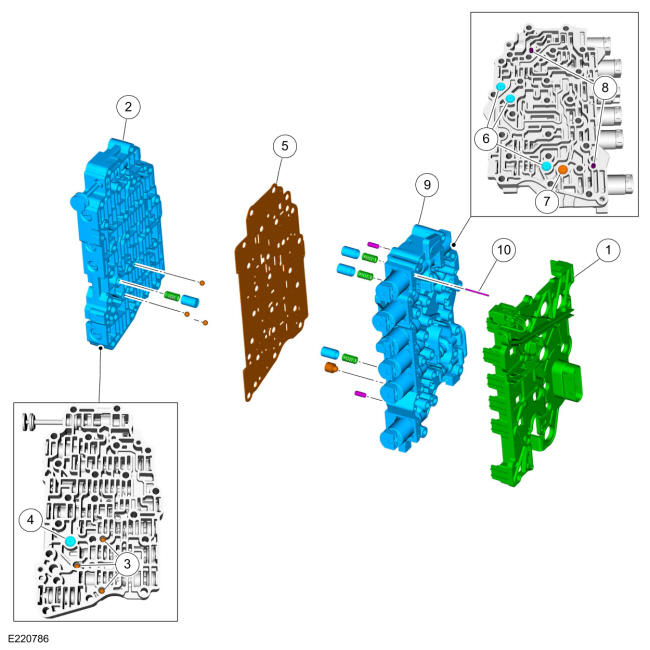

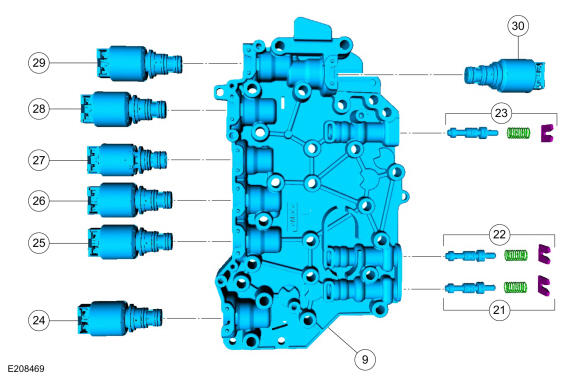

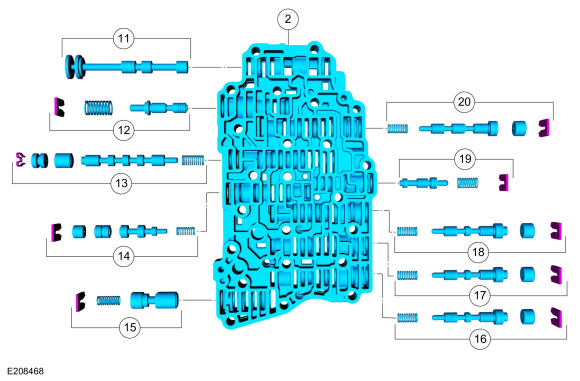

Main Control Valve Body
Base Part Number: 7A100
| Item | Description |
|---|---|
| 1 | Transmission internal wiring harness frame |
| 2 | Main control valve body |
| 3 | Check balls (3 required) |
| 4 | Solenoid damper SSA |
| 5 | Solenoid body-to-valve body separator plate |
| 6 | Damper pistons and springs (3 required) |
| 7 | Elastomeric damper |
| 8 | Dowel pins (2 required) |
| 9 | Solenoid body |
| 10 | Solenoid retaining pin (14 required) |
| 11 | Manual valve |
| 12 | Solenoid pressure regulator valve assembly |
| 13 | Clutch bypass valve |
| 14 | TCC regulator valve |
| 15 | Control pressure regulator |
| 16 | Direct (3, 5, R) clutch regulator valve |
| 17 | Intermediate (2, 6) clutch regulator valve |
| 18 | Forward (1, 2, 3, 4) clutch regulator valve |
| 19 | Forward (1, 2, 3, 4) clutch latch valve |
| 20 | Low reverse/overdrive (4, 5, 6) clutch regulator valve |
| 21 | Direct (3, 5, R) clutch latch valve |
| 22 | Intermediate (2, 6) clutch latch valve |
| 23 | Low reverse/overdrive (4, 5, 6) clutch latch valve |
| 24 | LPC solenoid |
| 25 | SSC |
| 26 | TCC solenoid |
| 27 | SSE ON/OFF solenoid |
| 28 | SSA |
| 29 | SSB |
| 30 | SSD |
