2016 Ford Escape SFACTORY OEM SERVICE PROCEDURE
Transfer Case Fluid Level Check
WARNING: This page is about a different variant/trim than selected.
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL | WSL-M2C192-A |
Check
- 1.
Follow the health and safety precautions. REFER to: Health and Safety Precautions
- 2.
With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview
- 5.

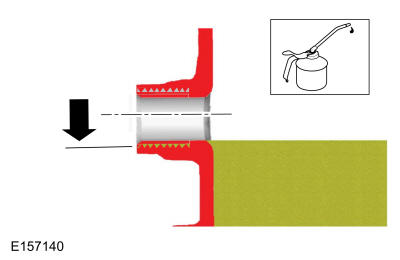

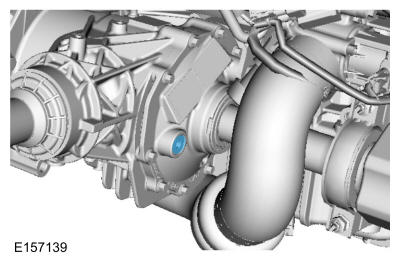

Fill the PTU with clean fluid, level with the fill plug opening.Material
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)
