2016 Ford Edge SE, AWDFACTORY OEM SERVICE PROCEDURE

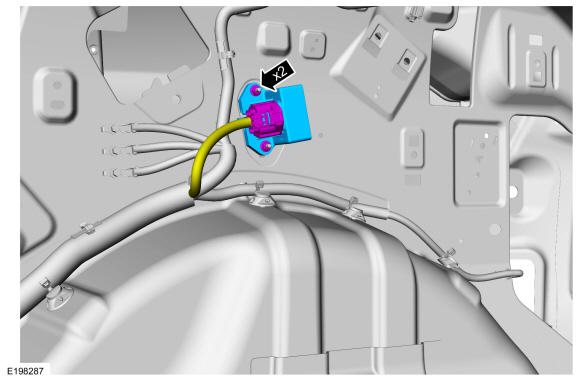

All-Wheel Drive (AWD) Module: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the RH load space trim panel. Refer to: Loadspace Trim Panel .
