2015 Ford Transit Connect TitaniumFACTORY OEM SERVICE PROCEDURE

Pinpoint Test KC: Fuel Pump Control Module: Introduction: Notes

This pinpoint test is intended to diagnose the following:

  • fuel pump (9H307)
  • fuel pump control module (9D370)
  • fuel pump control module relay
  • inertia fuel shutoff (IFS) switch (9341)
  • harness circuits: B+, GND, FPC, FPM, FPPWR, FPRTN, IES, VPWR, and VPWR Fuel
  • PCM (12A650)

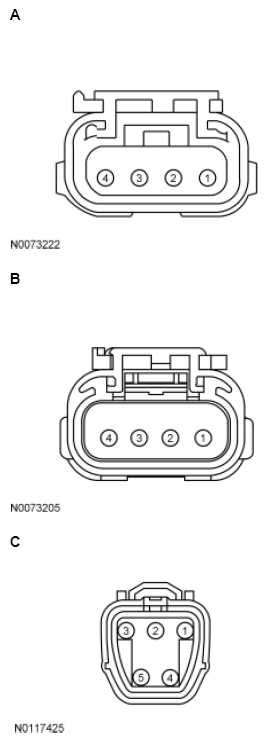

    Fig 1: Identifying Fuel Pump (FP) Connector
    G09957004Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
E-Series,
Expedition,
F-150,
Mustang,
Navigator,
Transit		 A 3
4		 FPRTN
FPPWR
F-650/F-750,
F-Series Super Duty,
Motorhome/Stripped Chassis/Step Van		 B 3
4		 FPRTN
FPPWR
All other vehicles C 4
5		 FPRTN
FPPWR
Fig 2: Identifying Fuel Pump Control Module Connector
G06054377Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
F-150,
F-650/F-750,
Focus,
Fusion,
MKC,
MKZ,
Motorhome/Stripped Chassis/Step Van,
Mustang		 A 8
5
7
3
4
1		 FPRTN
FPPWR
FPM
FPC
GND
VPWR Fuel
All other vehicles A 6
8
5
7
3
4
1		 ENS
FPRTN
FPPWR
FPM
FPC
GND
VPWR Fuel

Fuel Pump Control Module Relay Connector

Refer to the Wiring Diagrams service information for schematic and connector information.

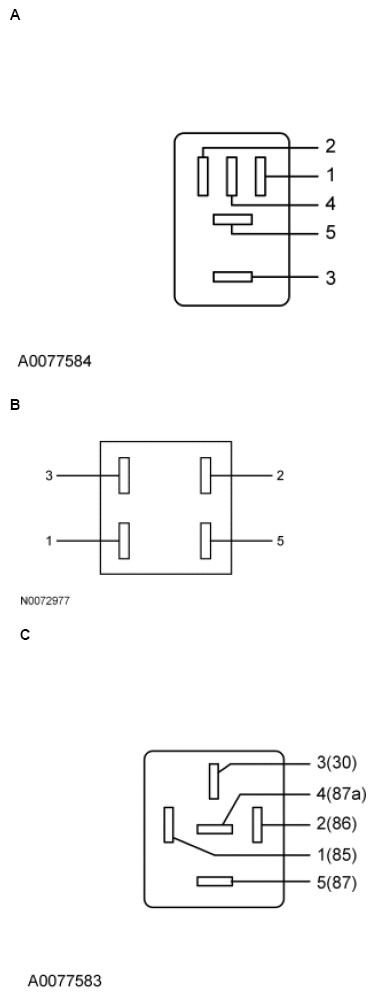

Fig 3: Identifying Fuel Pump Control Module Relay Connector
G09957006Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
E-Series,
Motorhome/Stripped Chassis/Step Van		 A 2
1
3
5		 GND
VPWR
B+
VPWR Fuel
Edge,
F-150,
F-Series Super Duty,
Flex,
MKT		 B 2
1, 3
5		 FP
B+
VPWR Fuel
Expedition,
MKC,
Mustang,
Navigator,
Transit		 A 2
1, 3
5		 FP
B+
VPWR Fuel
F-650/F-750 C 86
30, 85
87		 GND
B+
VPWR Fuel
Fiesta B 2
1
3
5		 GND
VPWR
B+
VPWR Fuel
All other vehicles B 1
2, 3
5		 FP
B+
VPWR Fuel

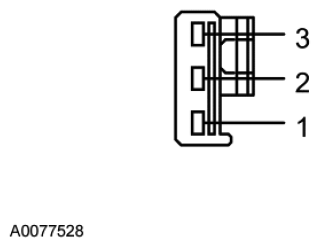

Fig 4: Identifying Inertia Fuel Shutoff (IFS) Switch Connector
G06054223Courtesy of FORD MOTOR CO.
Pin Circuit
1 VPWR Fuel - B
2 VPWR Fuel - A

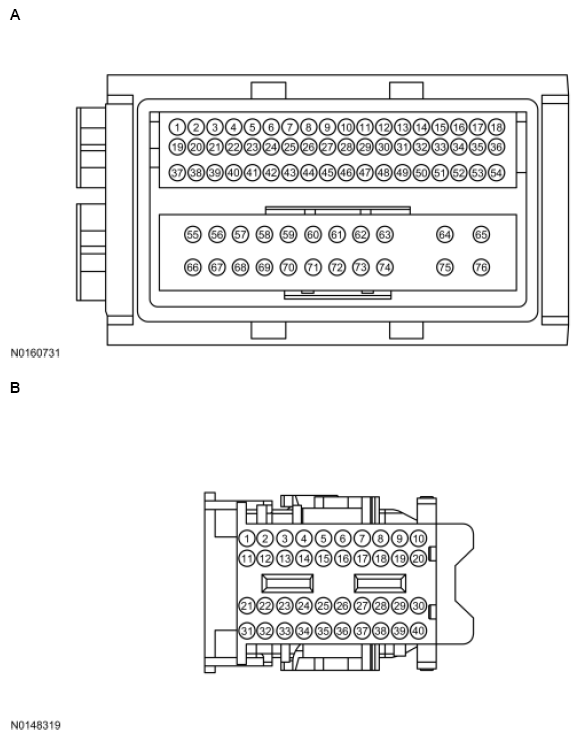

Fig 5: Identifying Body Control Module-C (BCM-C) Connector
G09957008Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Transit A 12 FP
All other vehicles B 29
26		 IES
FP
Fig 6: Identifying Body Control Module-E (BCM-E) Connector
G09137551Courtesy of FORD MOTOR CO.
Pin Circuit
E9 VPWR (Vehicle Power)

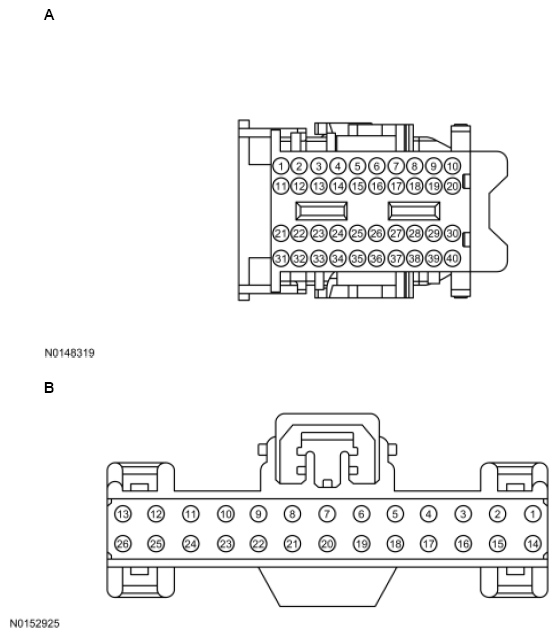

Fig 7: Identifying Body Control Module-F (BCM-F) Connector
G09957010Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
F-150,
Mustang		 A 26 FP
All other vehicles B 6 FP

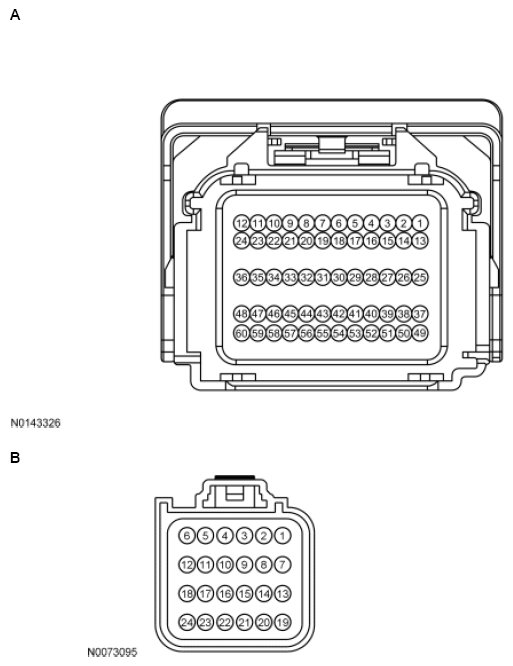

Fig 8: Identifying Restraints Control Module (RCM) Connector
G09957011Courtesy of FORD MOTOR CO.
Vehicle Connector Pin Circuit
Expedition,
Explorer,
Fiesta,
MKS,
Navigator,
Taurus,
Transit		 A 42 ENS
All other vehicles B 19 ENS
