2014 Ford Mustang Base, 2D Convertible, Automatic TransFACTORY OEM SERVICE PROCEDURE
External Controls: Notes

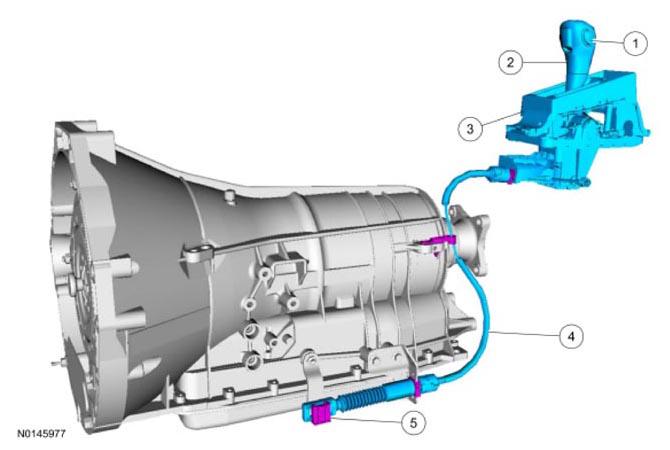

| Item | Part Number | Description |
|---|---|---|
| 1 | - | SelectShift™ switch (part of 7213) |
| 2 | 7213 | Selector lever knob |
| 3 | 7210 | Selector lever assembly |
| 4 | 7E395 | Selector lever cable |
| 5 | - | Adjuster locking tab (part of 7E395) |
The indicated position of the transmission selector lever is transferred to the transmission through the transmission selector lever cable and down to the manual control lever on the transmission.
