2014 Ford Fusion Titanium, FWDFACTORY OEM SERVICE PROCEDURE
Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2013 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

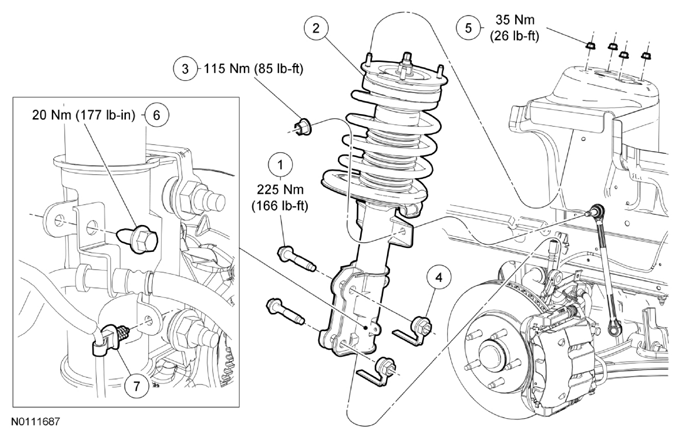

| Item | Part Number | Description |
|---|---|---|
| 1 | W714652 | Strut-to-wheel spindle bolt (2 required) |
| 2 | - | Strut and spring assembly |
| 3 | W712503 | Stabilizer bar link upper nut |
| 4 | W714653 | Strut-to-wheel spindle flagnut (2 required) |
| 5 | W520112 | Strut upper mount nut (4 required) |
| 6 | N802191 | Brake hose bracket bolt |
| 7 | - | Wheel speed sensor harness retainer (part of 2C204) |
