Pinpoint Test QA: Unable To Activate Self-Test/Network Communication Error: Introduction
This pinpoint test is intended to diagnose the following:
- unable to communicate with the powertrain control module (PCM)
- incorrect self-test procedure
- harness circuits: B+, ETCREF, GND, ISP-R, PWRGND and VPWR

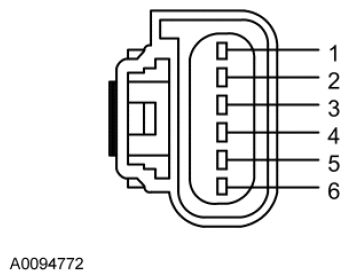

| Pin | Circuit |
|---|---|
| 4 | ETCRTN (Electronic Throttle Control Return) |
| 5 | ETCREF (Electronic Throttle Control Reference Voltage) |
| Pin | Circuit |
|---|---|
| B35, B36, B47, B48, T31 | PWRGND (Power Ground) |
| B11, B12 | VPWR (Vehicle Power) |
| B1 | PCMRC (PCM Relay Control) |
| B8 | ISP-R (Ignition Switch Position Run) |
