WARNING: TO PREVENT THE RISK OF HIGH-VOLTAGE SHOCK, ALWAYS FOLLOW PRECISELY ALL WARNINGS AND SERVICE INSTRUCTIONS, INCLUDING INSTRUCTIONS TO DEPOWER THE SYSTEM. THE HIGH-VOLTAGE SYSTEM UTILIZES APPROXIMATELY 300 VOLTS DC, PROVIDED THROUGH HIGH-VOLTAGE CABLES TO ITS COMPONENTS AND MODULES. THE HIGH-VOLTAGE CABLES AND WIRING ARE IDENTIFIED BY ORANGE HARNESS TAPE OR ORANGE WIRE COVERING. ALL HIGH-VOLTAGE COMPONENTS ARE MARKED WITH HIGH-VOLTAGE WARNING LABELS WITH A HIGH-VOLTAGE SYMBOL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

This pinpoint test is intended to diagnose the following:

fuel pump (9H307)
fuel pump control module (9D412)
fuel pump control module relay
harness circuits: FP, FPC, FPM, FPPWR, FPRTN, VPWR Fuel, and GND
powertrain control module (PCM) (12A650)

Fig 1: Identifying Fuel Pump Connector Terminals
Courtesy of FORD MOTOR CO.

Pin	Circuit
4	FPRTN (Fuel Pump Return)
5	FPPWR (Fuel Pump Power)

Fig 2: Identifying Fuel Pump Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
8	FPRTN (Fuel Pump Return)
5	FPPWR (Fuel Pump Power)
7	FPM (Fuel Pump Monitor)
3	FPC (Fuel Pump Command)
4	GND (Ground)
1	VPWR Fuel

Fig 3: Identifying Fuel Pump Control Module Relay Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
2	FP (Fuel Pump)
1, 3	B+ (Battery Positive Voltage)
5	VPWR Fuel

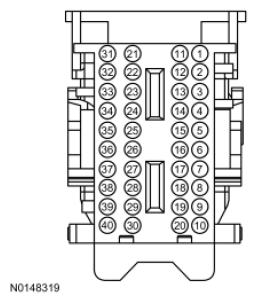

Fig 4: Identifying Body Control Module-C Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
26	FP (Fuel Pump)

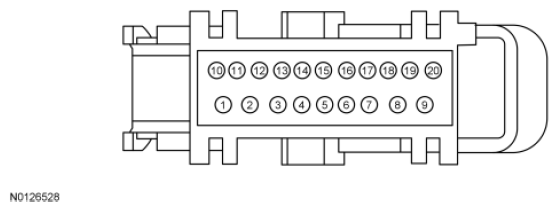

Fig 5: Identifying Body Control Module-E Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
9	VPWR Fuel

For PCM connector views or reference values, refer to REFERENCE VALUE SYMPTOM CHART .

Fig 6: Identifying Powertrain Control Module Connector Terminals

Courtesy of FORD MOTOR CO.

Pin	Circuit
B4	FPM (Fuel Pump Monitor)
B37	FPC (Fuel Pump Command)
