2014 Ford Focus Titanium, 4D Hatchback, Automatic DCT Trans, Gas/EthanolFACTORY OEM SERVICE PROCEDURE

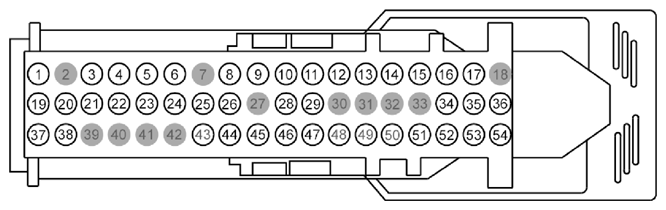

Accessory Protocol Interface Module (APIM) Connector End View (C2383)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP06 (BN-RD) | 22 | FUSE OUTPUT OR CIRCUIT BREAKER | SYNC GEN 2 |
| 1 | SBP67 (BU-RD) | 22 | FUSE OUTPUT OR CIRCUIT BREAKER | SYNC GEN 1 |
| 2 | * | * | Not Used | |
| 3 | VME80 (VT-GN) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 4 | RME80 (BU-GY) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 5 | VMM13 (BN) | 20 | MICROPHONE - PHONE/VOICE CONTROL | |
| 6 | DMM13 (*) | 20 | MICROPHONE - PHONE/VOICE CONTROL SHIELD | |
| 7 | * | * | Not Used | |
| 8 | VME67 (VT-GY) | 20 | CTRL MOD. - 5V MEDIA POWER | |
| 9 | DME45 (*) | 20 | JACK - AUDIO # EXT. AUX SHIELD | |
| 10 | VME45 (BU) | 20 | JACK - AUDIO # EXT. AUX IN LEFT (+) | |
| 11 | RME45 (YE-GN) | 20 | JACK - AUDIO # EXT. AUX IN LEFT (-) | |
| 12 | VMM13 (BN) | 20 | MICROPHONE - PHONE/VOICE CONTROL | |
| 13 | DMM13 (*) | 20 | MICROPHONE - PHONE/VOICE CONTROL SHIELD | |
| 14 | VMP31 (BU) | 20 | REAR VIEW CAMERA SIGNAL | |
| 15 | RMP31 (GN) | 20 | REAR VIEW CAMERA RETURN | |
| 16 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | SYNC GEN 2 |
| 16 | VDB13 (BU-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH | SYNC GEN 1 |
| 17 | VDB07 (VT-GY) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | SYNC GEN 2 |
| 17 | VDB14 (VT-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW | SYNC GEN 1 |
| 18 | * | * | Not Used | |
| 19 | VDB13 (BU-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH | |
| 20 | VDB14 (VT-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW | |
| 21 | DME80 (*) | 20 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 | |
| 22 | DME17 (*) | 22 | CTRL MOD. - AUDIO # RADIO | SYNC GEN 1 |
| 22 | DME52 (*) | 20 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] | SYNC GEN 2 |
| 23 | VME18 (VT) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT | SYNC GEN 1 |
| 23 | VME52 (BU) | 20 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT + | SYNC GEN 2 |
| 24 | RME18 (YE) | 22 | CTRL MOD. - AUDIO # RADIO RIGHT | SYNC GEN 1 |
| 24 | RME52 (GY-OG) | 20 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] LEFT | SYNC GEN 2 |
| 25 | VME17 (GN) | 22 | CTRL MOD. - AUDIO # RADIO LEFT | SYNC GEN 1 |
| 25 | VME53 (VT-GN) | 20 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT + | SYNC GEN 2 |
| 26 | RME17 (GY) | 22 | CTRL MOD. - AUDIO # RADIO LEFT | SYNC GEN 1 |
| 26 | RME53 (BN-WH) | 20 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO [SATELLITE DIGITAL RADIO] RIGHT - | SYNC GEN 2 |
| 27 | * | * | Not Used | |
| 28 | VME46 (BU-GN) | 20 | JACK - AUDIO # EXT. AUX IN RIGHT (+) | |
| 29 | RME46 (WH-GN) | 20 | JACK - AUDIO # EXT. AUX IN RIGHT (-) | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | * | * | Not Used | |
| 34 | VME19 (BN) | 20 | CTRL MOD. - AUDIO # VIDEO + | |
| 35 | RME19 (BN-YE) | 20 | CTRL MOD. - AUDIO # VIDEO - | |
| 36 | DME19 (*) | 20 | AUX VIDEO SHIELD | |
| 37 | GD135 (BK-GY) | 20 | GROUND - PILLAR A LEFT # 3RD STUD | |
| 38 | GD135 (BK-GY) | 20 | GROUND - PILLAR A LEFT # 3RD STUD | SYNC GEN 1 |
| 38 | RME67 (BN-WH) | 22 | MEDIA GROUND | SYNC GEN 2 |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | * | * | Not Used | |
| 42 | * | * | Not Used | |
| 43 | * | * | Not Used | |
| 44 | DME37 (*) | 22 | CTRL MOD. - AUDIO # EXT. AUX IN | SYNC GEN 1 |
| 45 | VME37 (GY-VT) | 22 | CTRL MOD. - AUDIO # EXT. AUX IN L | SYNC GEN 1 |
| 46 | RME45 (YE-GN) | 22 | JACK - AUDIO # EXT. AUX IN LEFT OR COMMON (-) | SYNC GEN 1 |
| 46 | VME14 (GY-YE) | 22 | SWITCH - REDUNDANT AUDIO | SYNC GEN 2 |
| 47 | RME24 (BU-WH) | 22 | CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO | SYNC GEN 2 |
| 47 | VME38 (WH-OG) | 22 | CTRL MOD. - AUDIO # EXT. AUX IN R | SYNC GEN 1 |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | * | * | Not Used | |
| 51 | VME58 (YE-VT) | 22 | CTRL MOD. - AUDIO # OUTPUT LEFT 2 + | |
| 52 | VME59 (YE-OG) | 22 | CTRL MOD. - AUDIO # OUTPUT RIGHT 2 + | |
| 53 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 54 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
