Quick Release Coupling: Connect

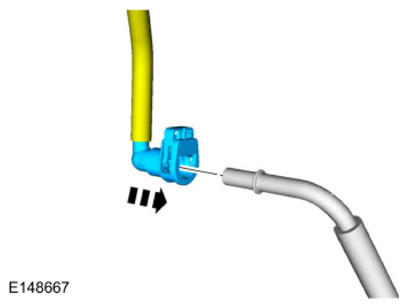

- Inspect and clean both quick coupling ends.
- Install the quick release coupling onto the tube.
-
NOTE: Make sure the retainer clip is fully seated and locked onto the tube by pulling on the quick release coupling.

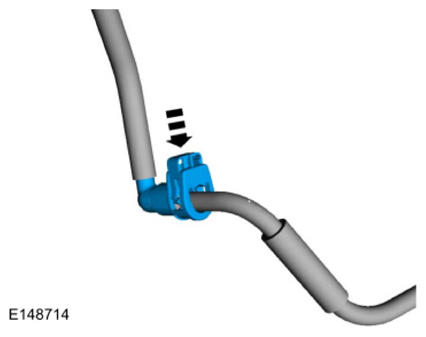

Press the retainer clip into the quick release coupling body until flush and the tabs are locked in place.
- Connect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT .
-
NOTE: Inspect and clean both quick release coupling ends.

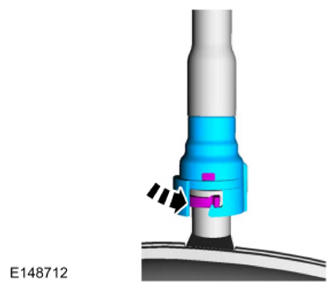

Release the lock tab and install the quick release coupling onto the fitting.
- Apply the lock tab into the latched position.
- Pull on the quick release coupling to make sure it is securely fastened.
- Connect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT .
-
NOTE: Inspect and clean both quick release coupling ends.

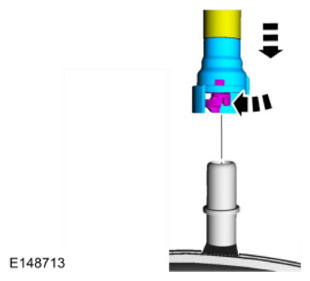

Install the quick release coupling onto the tube until it is fully seated.
- Pull on the quick release coupling to make sure it is securely fastened.
- Connect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT .
-
NOTE: Inspect and clean both quick release coupling ends.
Install the quick release coupling onto the tube until it is fully seated.
- Pull on the quick release coupling to make sure it is securely fastened.
- Connect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT .
