2014 Ford Focus Titanium, 4D Hatchback, Automatic DCT Trans, Gas/EthanolFACTORY OEM SERVICE PROCEDURE

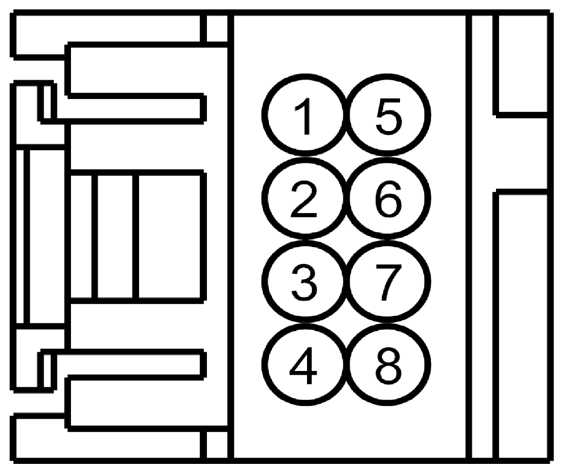

Front Controls Interface Module (FCIM) Connector End View (C2402)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CLS32 (BN-YE) | 22 | SWITCH - HAZARD | |
| 2 | CPLXX (WH-YE) | 20 | CENTERAL LOCK SWITCH INDICATOR | |
| 3 | CLN17 (BN) | 22 | NOT USED | |
| 4 | VDB14 (VT-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA LOW | |
| 5 | GD133 (BK-WH) | 18 | GROUND - PILLAR A LEFT | |
| 6 | CPK14 (BN) | 22 | SWITCH - CENTRAL UNLOCK DRIVER | |
| 7 | VDB13 (BU-GY) | 22 | INSTRUMENT CLUSTER # CAN BUS MULTIMEDIA HIGH | with SYNC GEN 2 |
| 7 | VMC29 (YE) | 22 | SWITCH - INFORMATION/MESSAGE CENTER SELECT | without SYNC GEN 2 |
| 8 | SBP06 (BN-RD) | 18 | FUSE OUTPUT OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-991 | Service Part Number: 3U2Z-14S411-LCB Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses
|
