2014 Ford Focus Titanium, 4D Hatchback, Automatic DCT Trans, Gas/EthanolFACTORY OEM SERVICE PROCEDURE

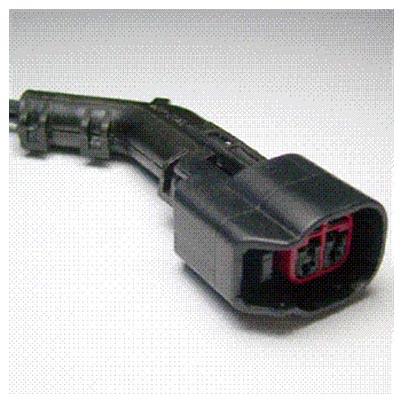

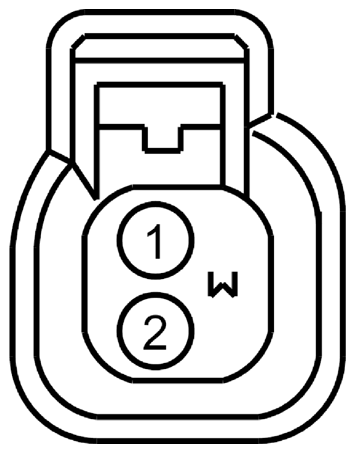

Wheel Speed Sensor, Left Front Connector End View (C150)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VCA03 (VT) | 20 | SENSOR - WHEEL SPEED LEFT FRONT | |
| 2 | RCA17 (YE) | 20 | CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1246 | Service Part Number: BU2Z-14S411-RA Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses
|
