2014 Ford Focus Titanium, 4D Hatchback, Automatic DCT Trans, Gas/EthanolFACTORY OEM SERVICE PROCEDURE
Rear Head Restraint Guide Sleeve: Removal
WARNING:
Before beginning any service procedure in this service information, refer to Safety Warnings in
GENERAL INFORMATION
. Failure to follow this instruction may result in serious personal injury.
- Refer to: HEALTH AND SAFETY PRECAUTIONS .
- Remove the head restraints.

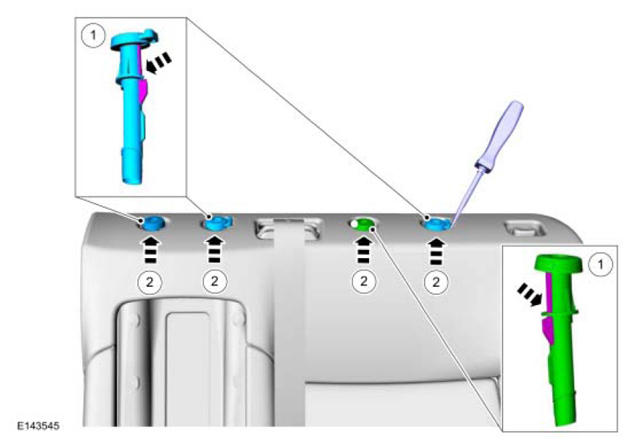

- 60 percent seat backrest shown in illustration, full seat backrest similar.
- General Equipment: Screwdriver
- 40 percent seat backrest shown in illustration, full seat backrest similar.
- General Equipment: Screwdriver
