External Controls: Notes

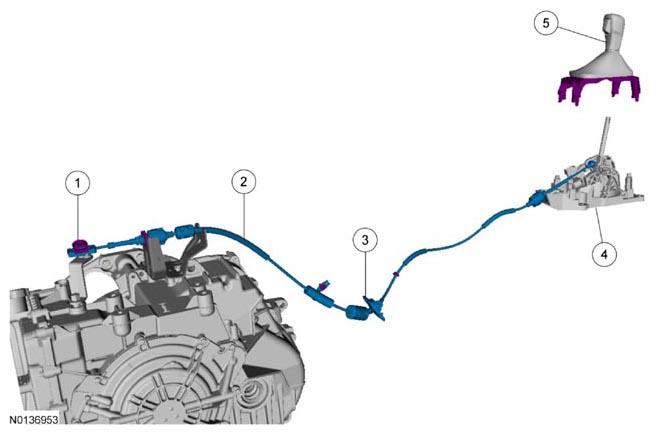

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Adjuster locking tab (part of 7E395) |
| 2 | 7E395 | Selector lever cable |
| 3 | - | Selector lever cable grommet (part of 7E395) |
| 4 | 7K004 | Selector lever assembly |
| 5 | - | Selector lever knob (part of 7K004) |
The transaxle selector lever linkage consists of:
- a selector lever cable that connects the transaxle manual control lever to the selector lever assembly.
- a BSIA that is integral to the selector lever assembly.
The selector lever assembly:
- locks the transaxle selector lever in the PARK position when the ignition switch is in the LOCK position.
- requires the transaxle selector lever to be in the PARK position to turn the ignition switch to the LOCK position.
