2014 Ford Fiesta STFACTORY OEM SERVICE PROCEDURE

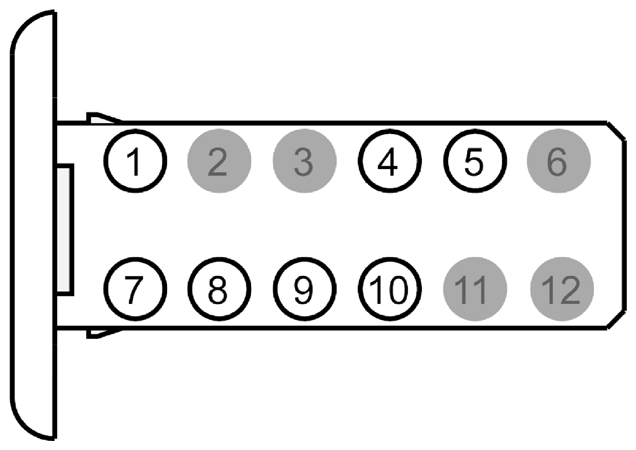

Front Control/Display Interface Module (FCDIM) Connector End View (C2123)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBP07 (WH-RD) | 22 | FUSE - 7 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | VDB13 (BU-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS HIGH | |
| 5 | VDB14 (VT-GY) | 20 | CTRL MOD. - MULTIMEDIA CAN BUS LOW | |
| 6 | * | * | Not Used | |
| 7 | RME24 (BU-WH) | 22 | CTRL MOD. - AUDIO # SWITCH REDUNDANT AUDIO | |
| 8 | VMC49 (VT) | 26 | CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS | |
| 9 | GD115 (BK-GY) | 20 | GROUND - CROSS CAR BEAM # 2ND POINT (OBSOLETE) | |
| 10 | VME14 (GY-YE) | 22 | SWITCH - REDUNDANT AUDIO + | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used |

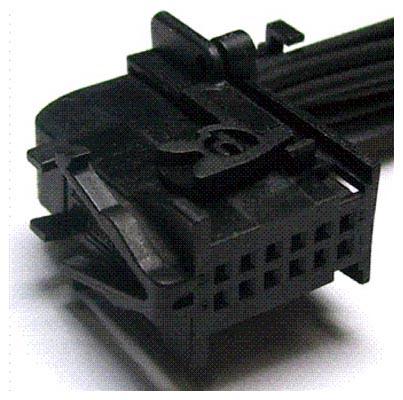

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1278 | Service Part Number: CU2Z-14S411-ABA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses
|
