2014 Ford Escape SFACTORY OEM SERVICE PROCEDURE

Transfer Case

WARNING: This page is about a different variant/trim than selected.

All vehicles

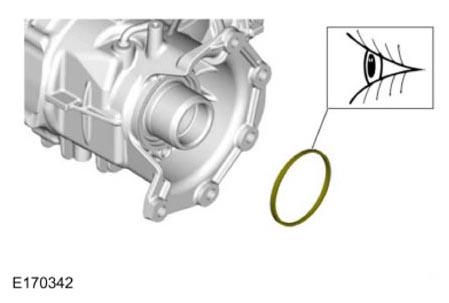

  1. Inspect and replace the o-ring seal if damaged.
    G09375510

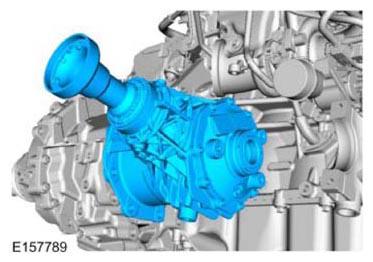

  2. G08637012

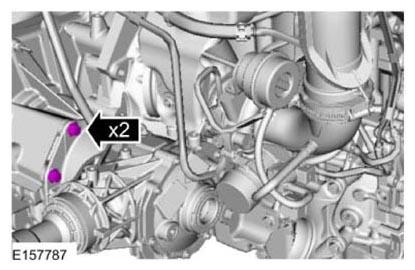

  3. Torque  : 46 lb.ft (63 Nm)
    G08637010
  4. Torque  : 46 lb.ft (63 Nm)

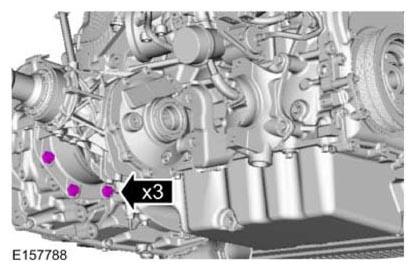

    G08637011

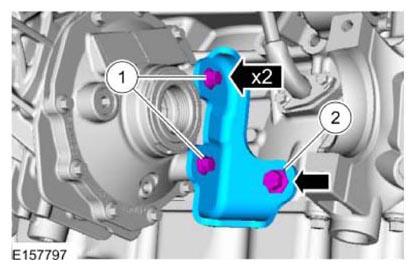

  5. Torque  :
    1. 18 lb.ft (25 Nm)
    2. 46 lb.ft (63 Nm)
      G08637016

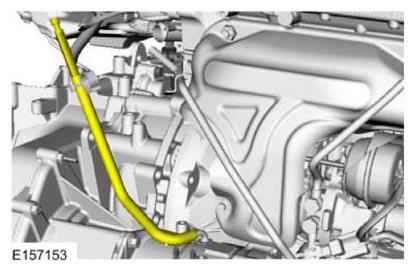

  6. G08637000
  7. Refer to: FRONT HALFSHAFT RH .

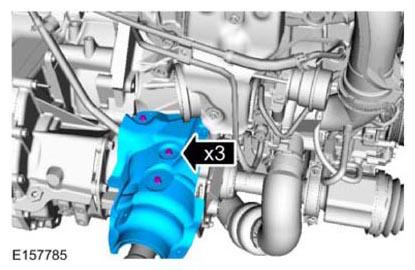

  8. Torque  : 97 lb.in (11 Nm)
    G08637006

    2.0L

  9. Refer to: CATALYTIC CONVERTER .
  10. Torque  :
    1. 44 lb.in (5 Nm)
    2. 97 lb.in (11 Nm)

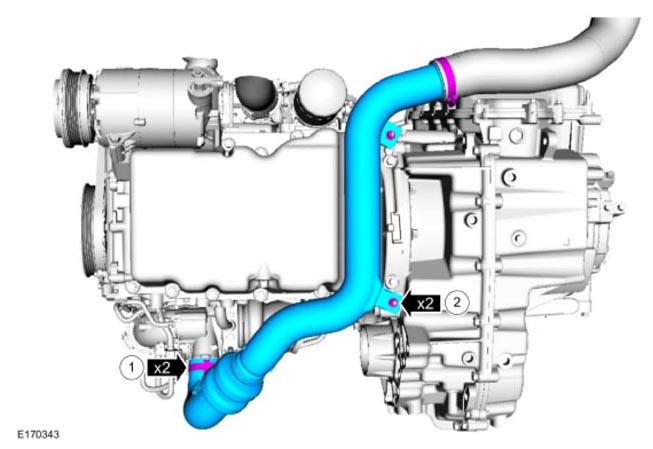

      G09375517

    1.6L

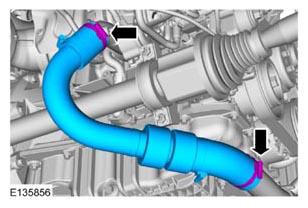

  11. Torque  : 44 lb.in (5 Nm)
    G08617215

    All vehicles

  12. Refer to: REAR DRIVESHAFT .
  13. Refer to: TRANSFER CASE FLUID LEVEL CHECK .
