2014 Ford Escape SFACTORY OEM SERVICE PROCEDURE
Component Location: Notes
WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

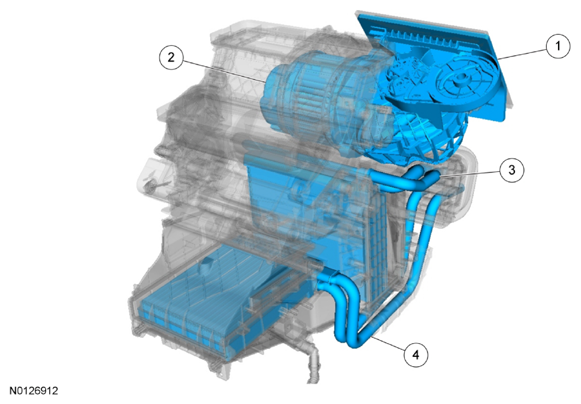

| Item | Description |
|---|---|
| 1 | Air inlet duct |
| 2 | Blower motor |
| 3 | Evaporator core |
| 4 | Heater core |

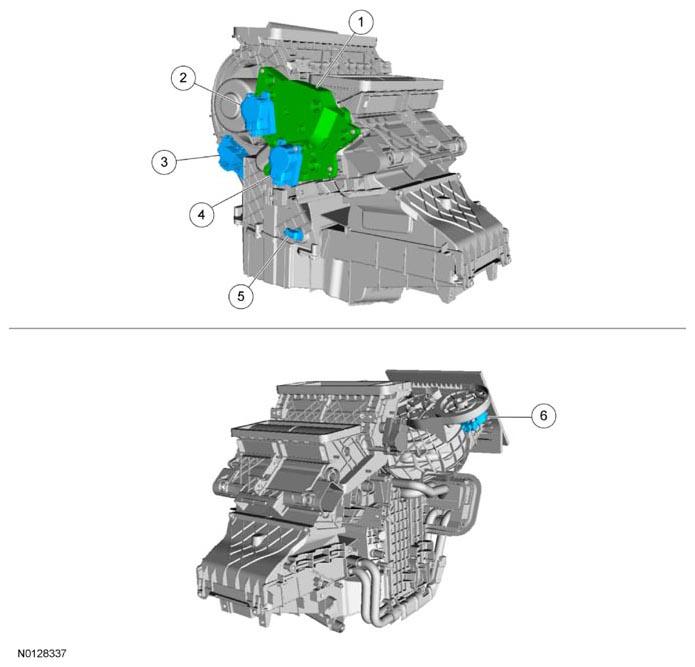

| Item | Description |
|---|---|
| 1 | Actuating assembly |
| 2 | Defrost/panel/floor airflow mode door actuator |
| 3 | Blower motor speed control |
| 4 | Temperature blend door actuator |
| 5 | Evaporator discharge air temperature sensor |
| 6 | Air inlet door mode door actuator |
