2012 Ford Taurus AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Timing Cover

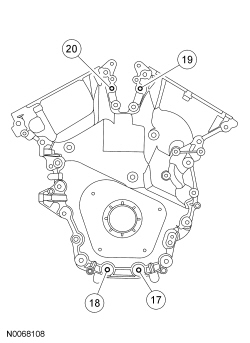

Install the engine front cover and bolts 17, 18, 19 and 20.
Tighten in sequence to 3 Nm (27 lb-in).

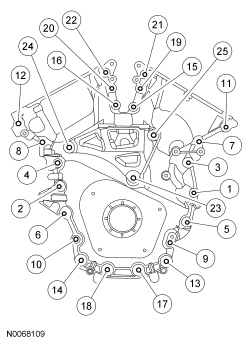

Install the remaining engine front cover bolts. Tighten all of the engine front cover bolts and engine mount bracket bolts in the sequence shown in 2 stages:
Stage 1: Tighten bolts 1 thru 22 to 10 Nm (89 lb-in) and bolts 23, 24 and 25 to 15 Nm (133 lb-in).
Stage 2: Tighten bolts 1 thru 22 to 24 Nm (18 lb-ft) and bolts 23, 24 and 25 to 75 Nm (55 lb-ft).
