2012 Ford Taurus AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE

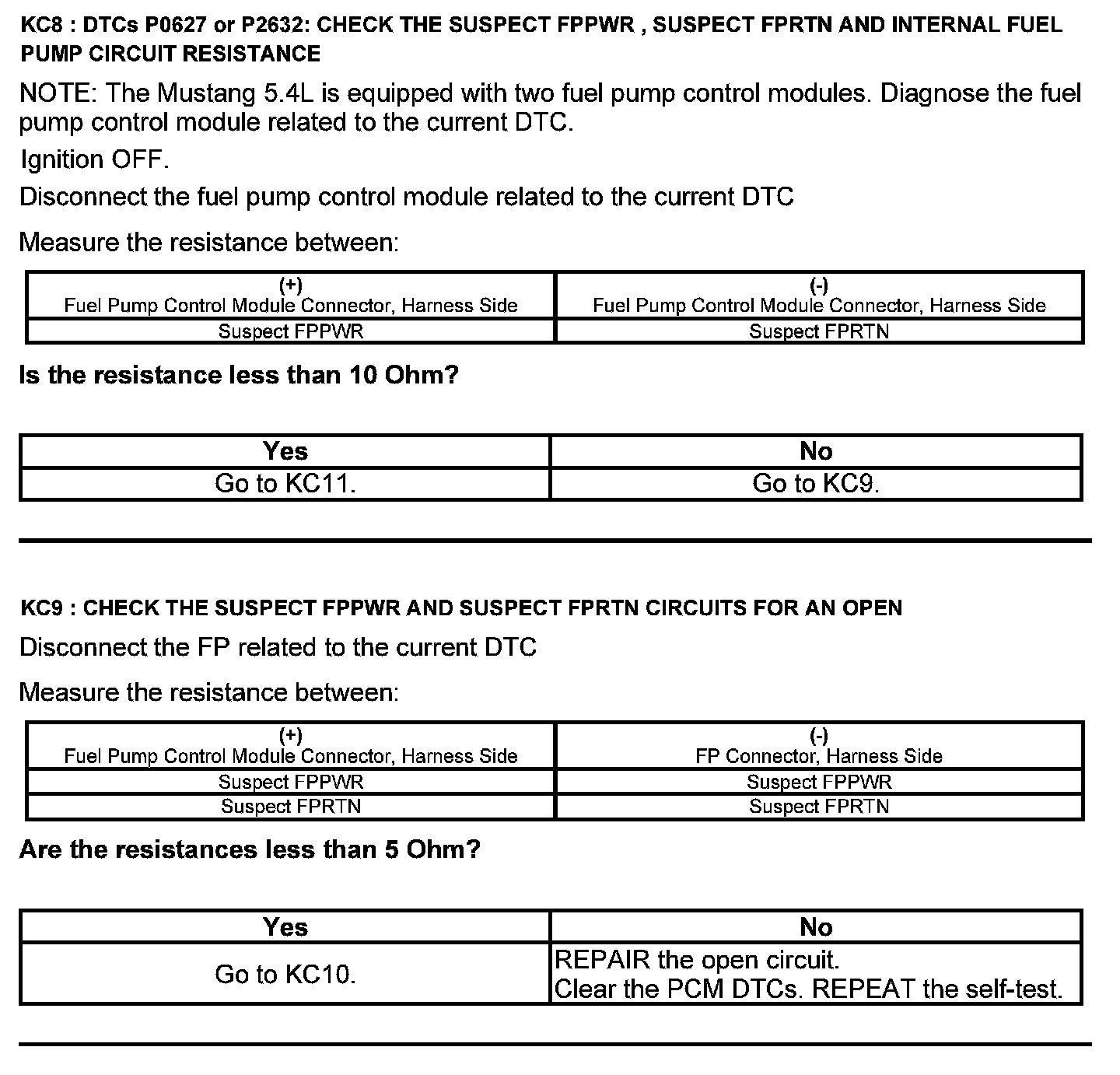

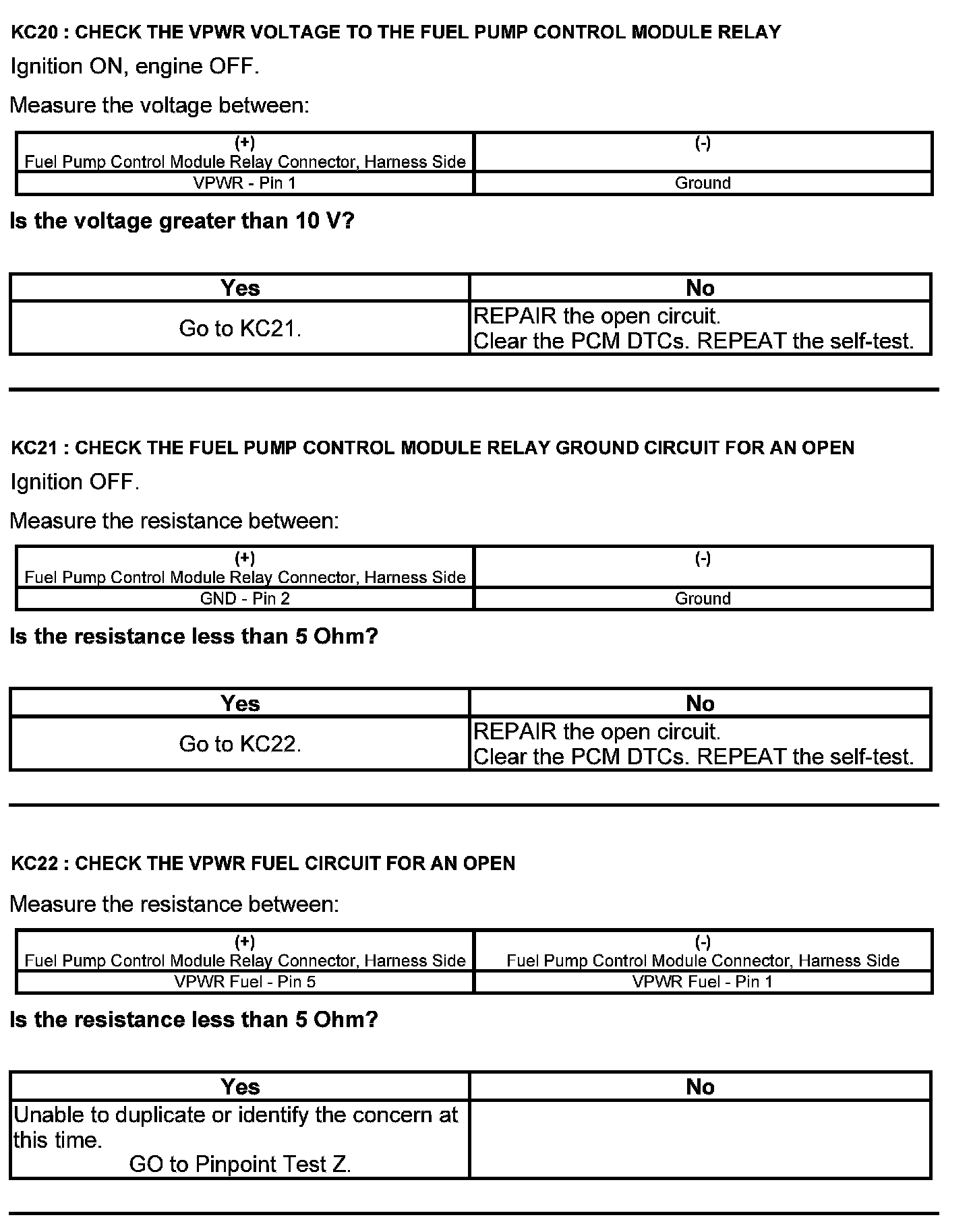

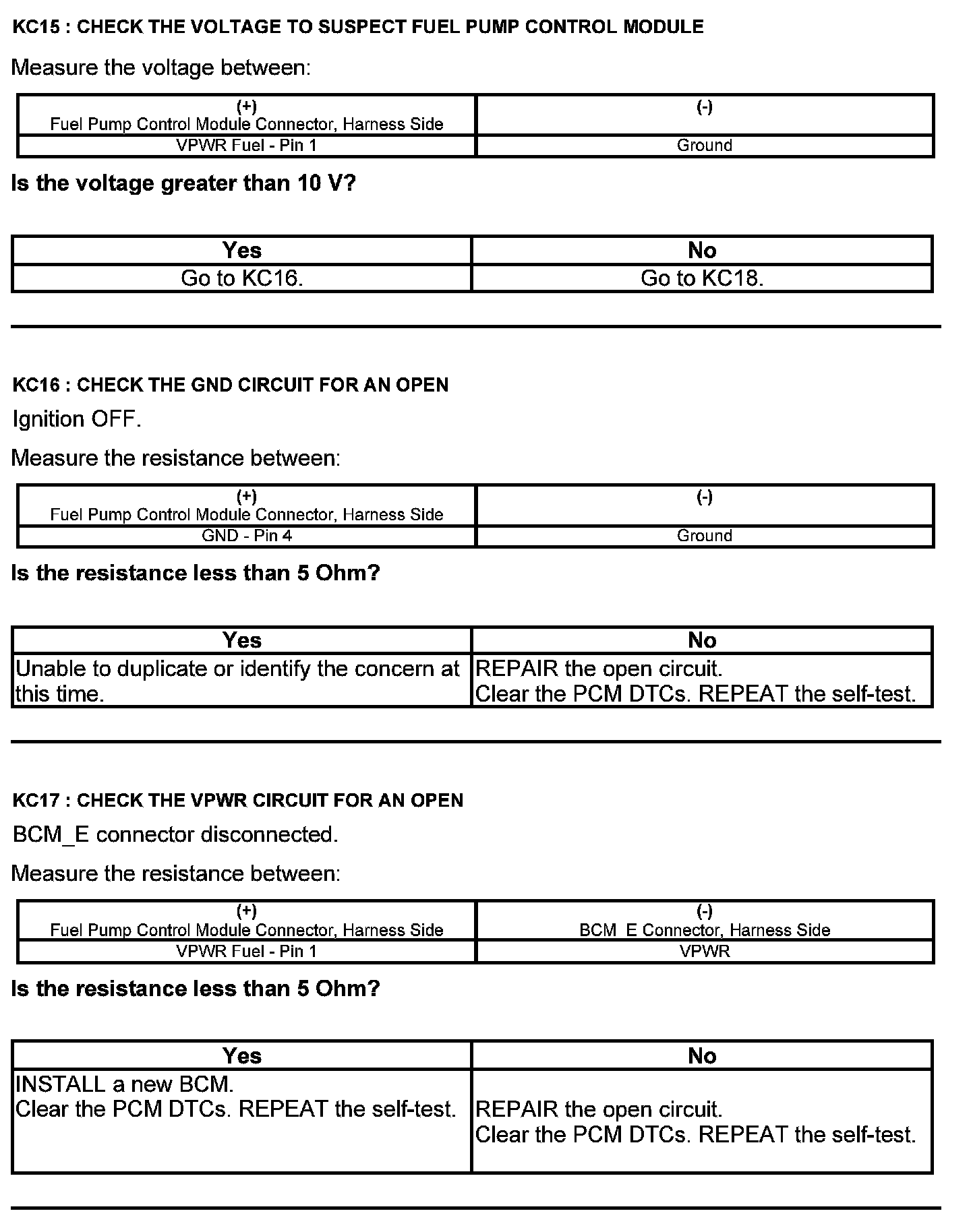

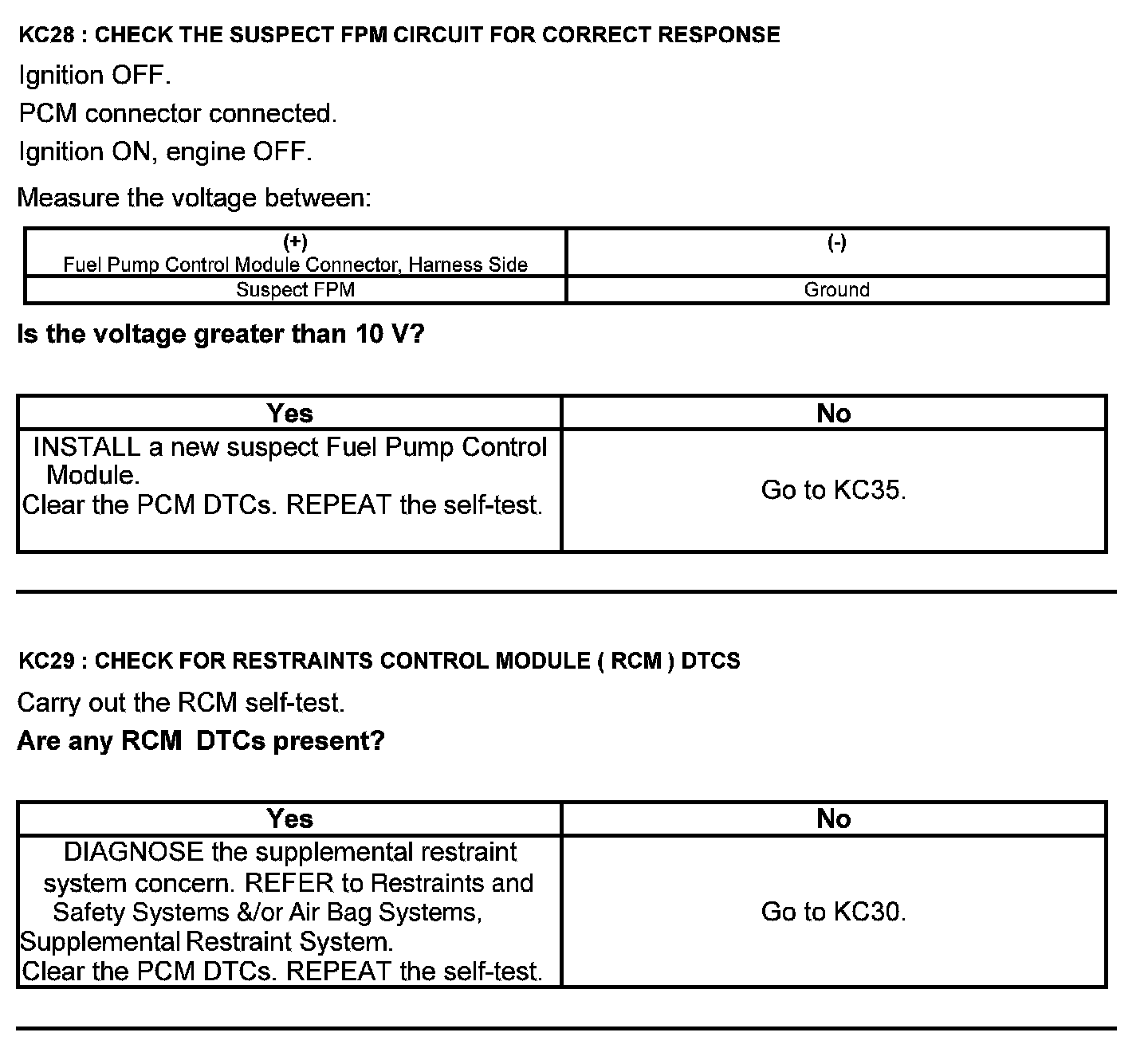

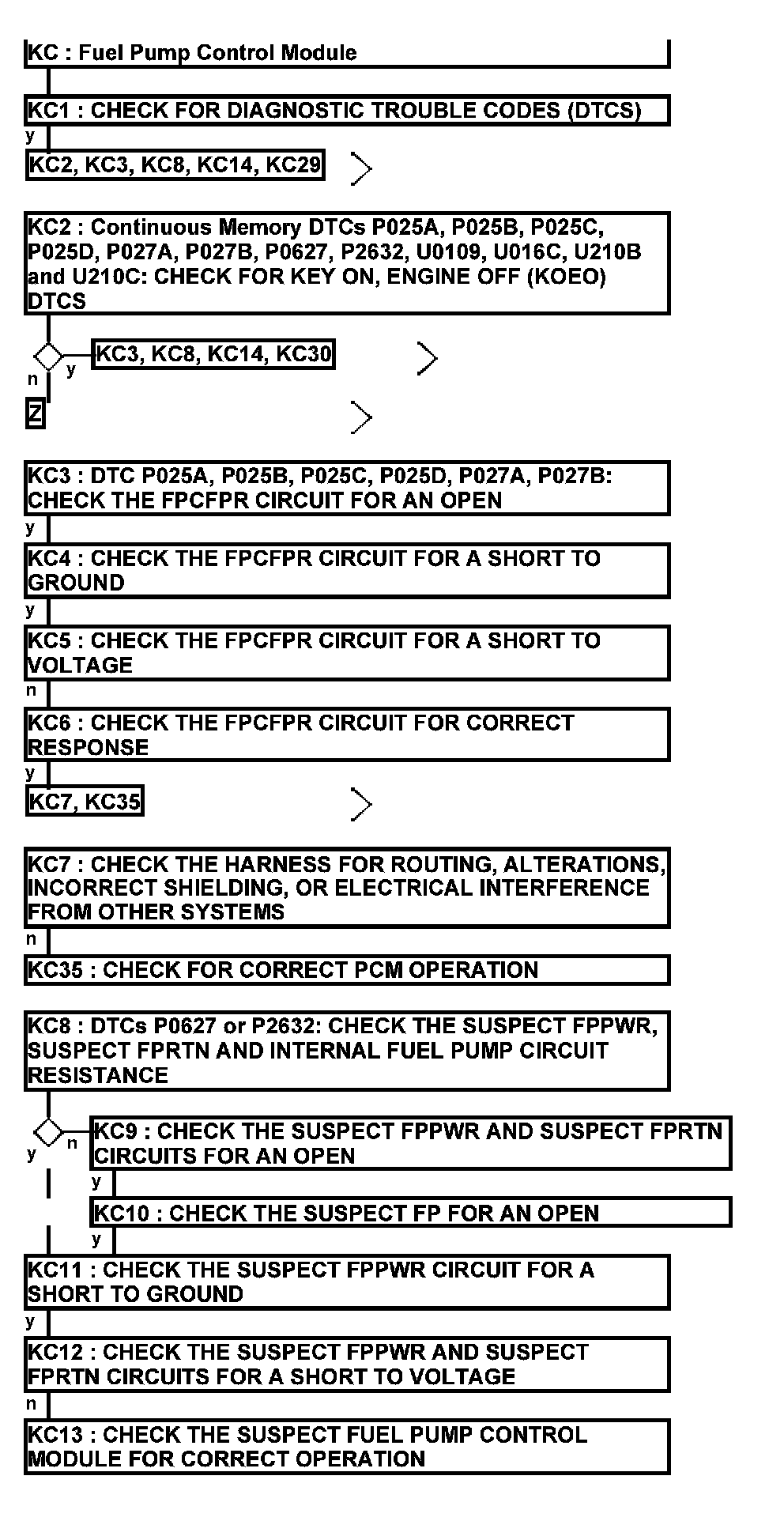

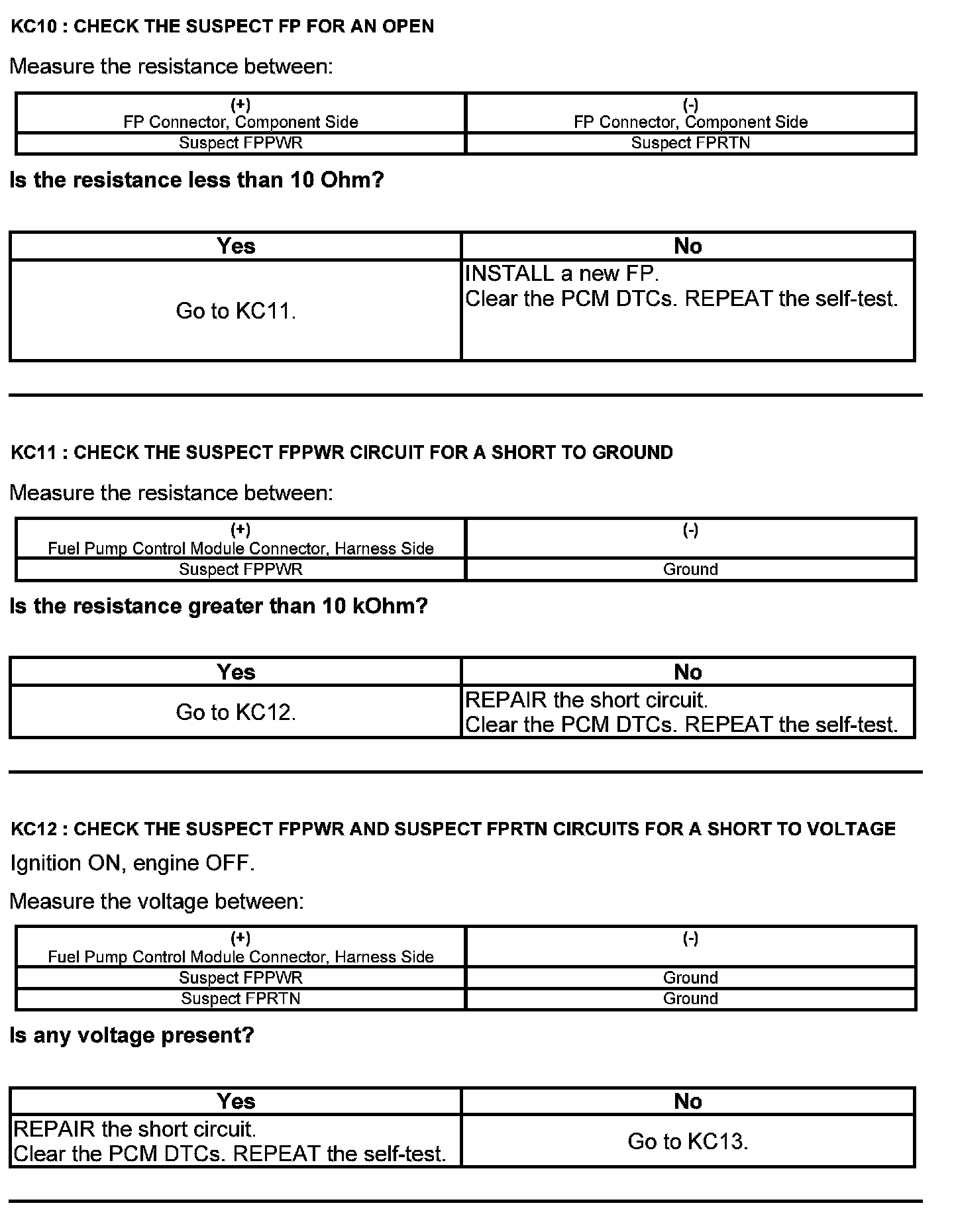

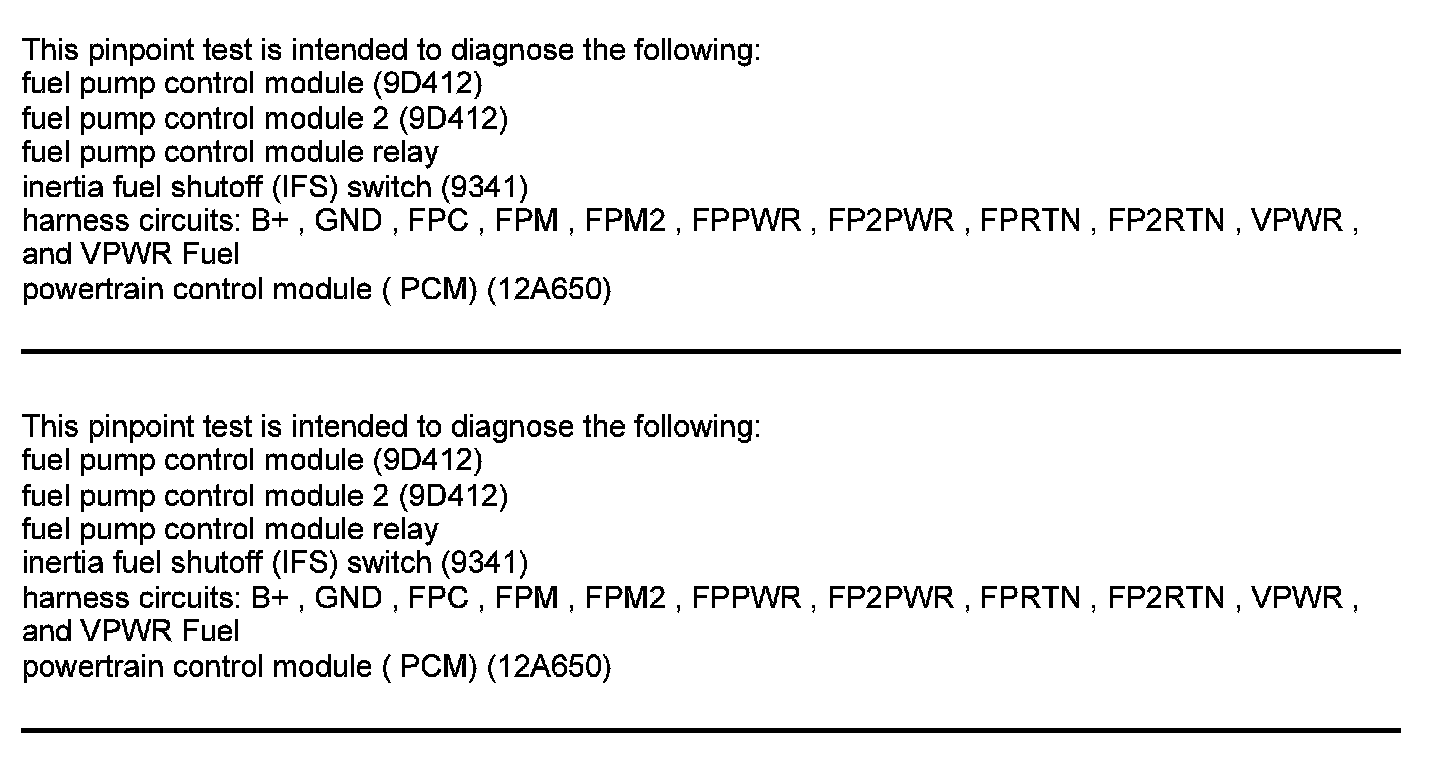

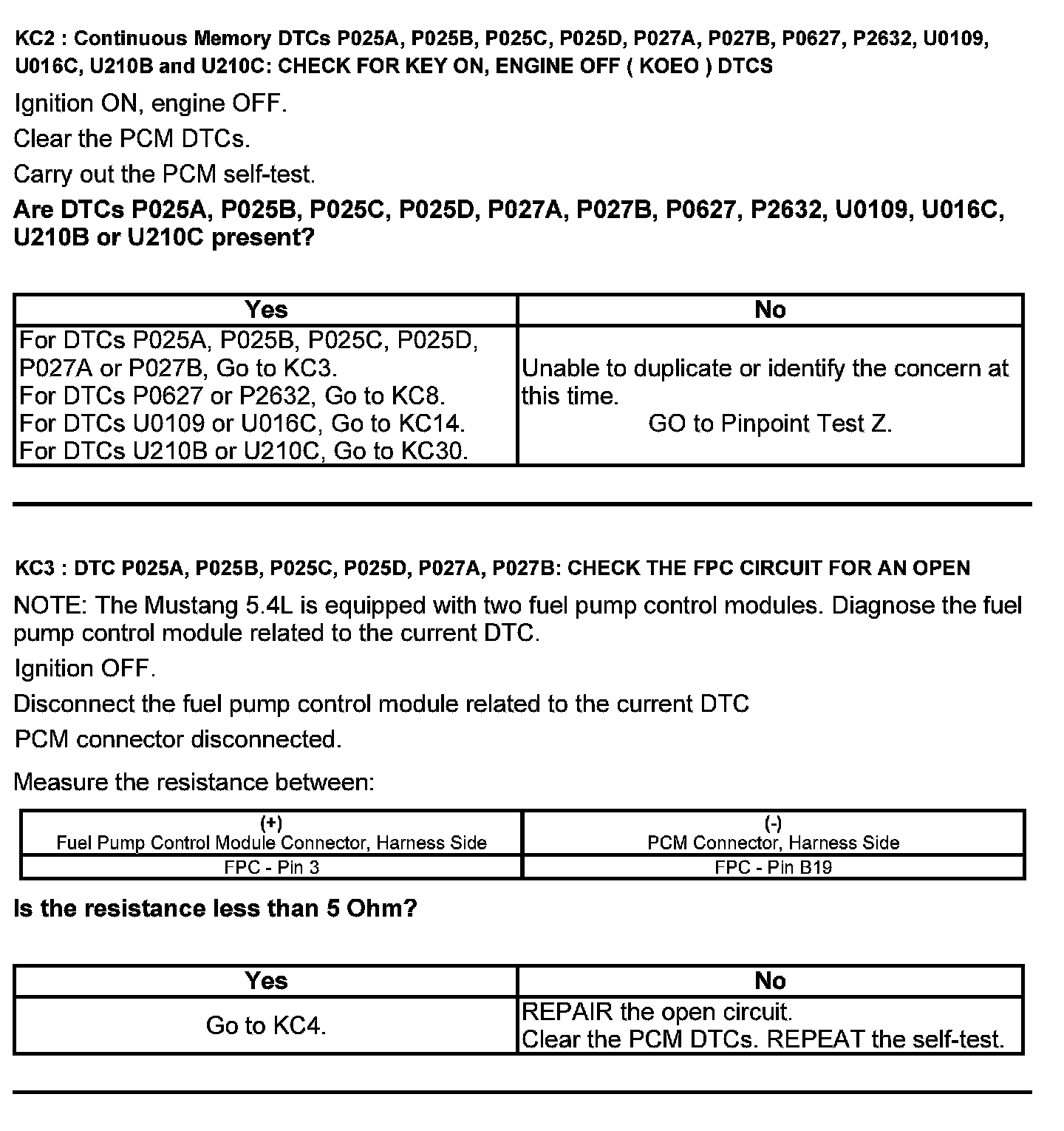

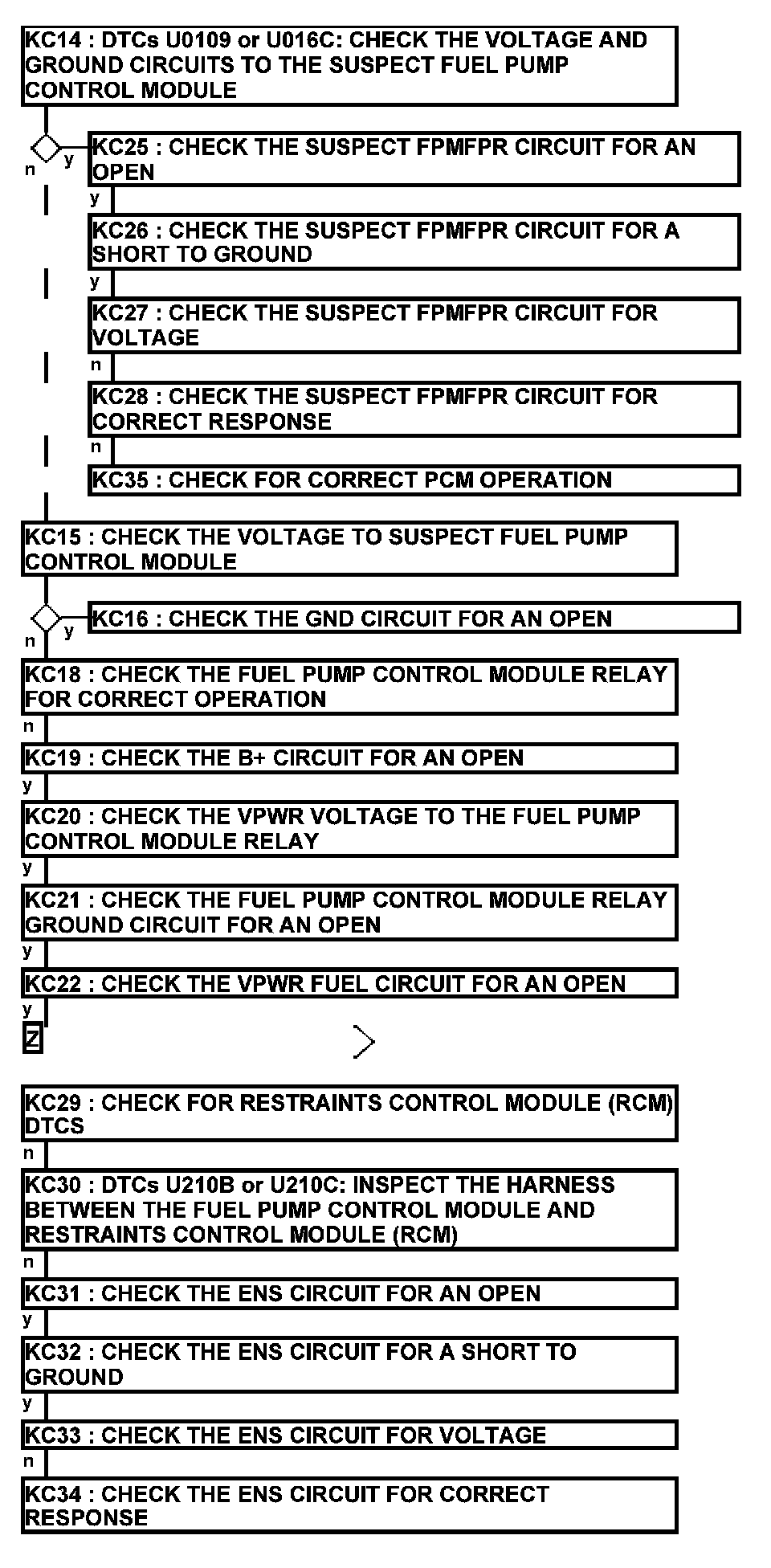

Test KC: Fuel Pump Control Module
Fuel Pump Control Module

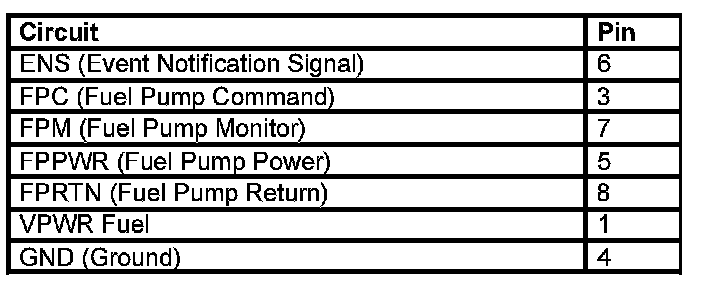

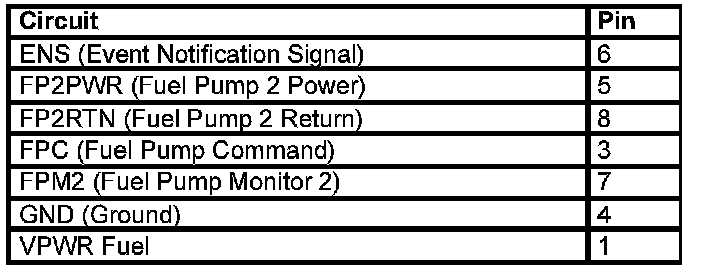

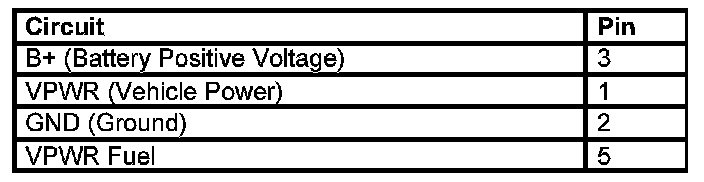

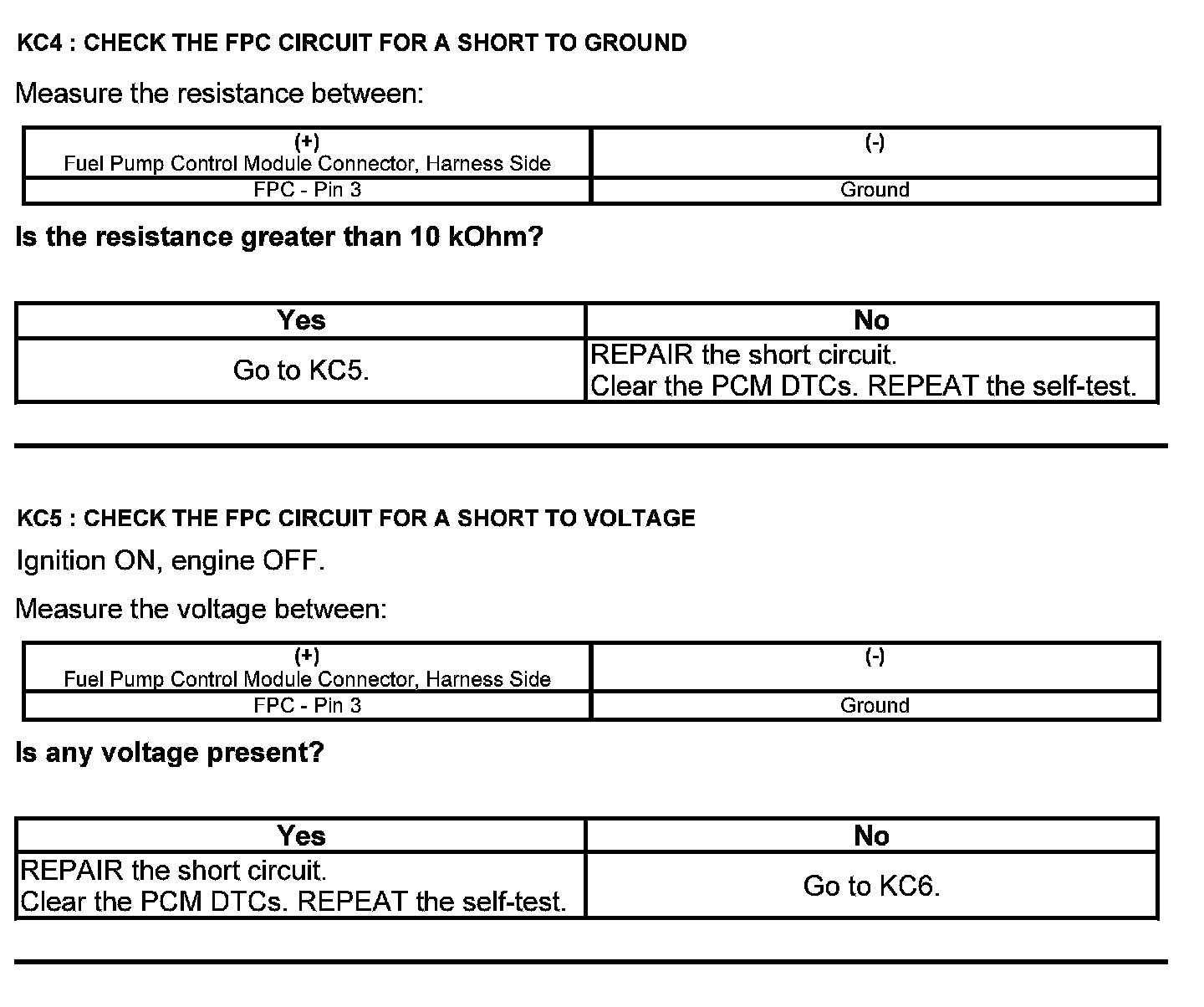

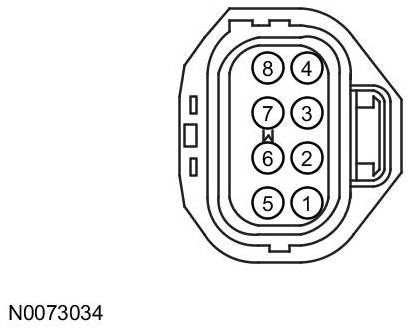

Fuel Pump Control Module Connector
Harness Side
Fuel Pump Control Module 2 Module Connector
Harness Side

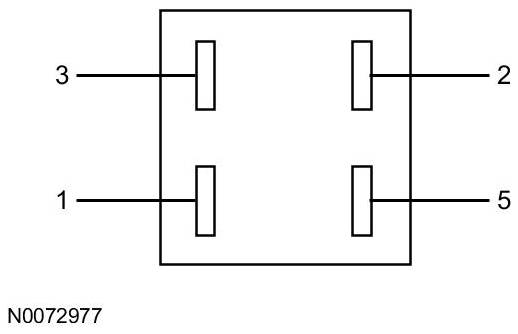

Fuel Pump Control Module Relay Connector - Refer to the Wiring Diagrams for schematic and connector information.
Harness Side
Inertia Fuel Shutoff (IFS) Switch Connector
Harness Side

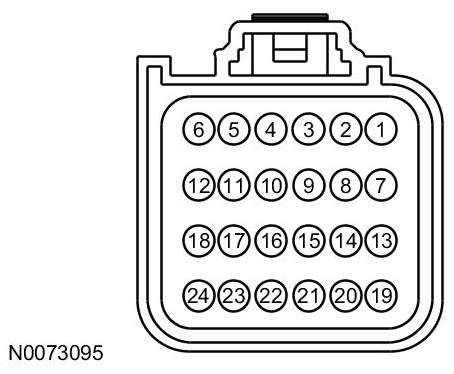

Restraints Control Module (RCM) Connector
Harness Side

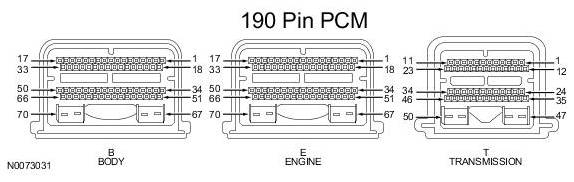

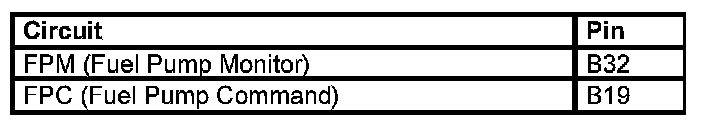

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.
Harness Side
