2012 Ford Taurus AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE

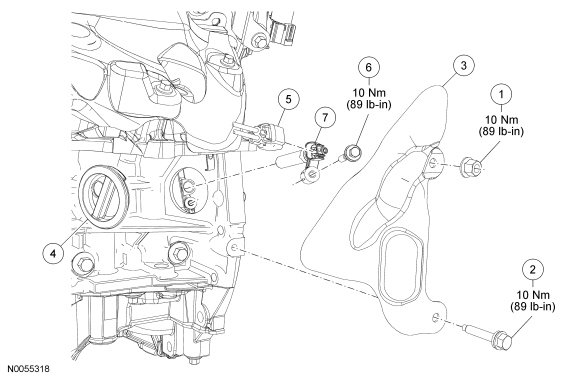

Crankshaft Position Sensor: Service and Repair
Crankshaft Position (CKP) Sensor
Removal and Installation
All vehicles
1. With the vehicle in NEUTRAL, position it on a hoist.
All vehicles except Gasoline Turbocharged Direct Injection (GTDI)
2. Remove the LH catalytic converter.
3. Remove the bolt, nut and the heat shield.
- To install, tighten to 10 Nm (89 lb-in).
GTDI (Gasoline Turbocharged Direct Injection) vehicles
4. Remove the LH turbocharger.
5. Remove the nut and the heat shield.
- To install, tighten to 10 Nm (89 lb-in).
All vehicles
6. Remove the rubber grommet cover.
7. Disconnect the Crankshaft Position (CKP) sensor electrical connector.
8. Remove the bolt and the CKP (Crankshaft Position) sensor.
- To install, tighten to 10 Nm (89 lb-in).
9. To install, reverse the removal procedure.
GTDI (Gasoline Turbocharged Direct Injection) vehicles

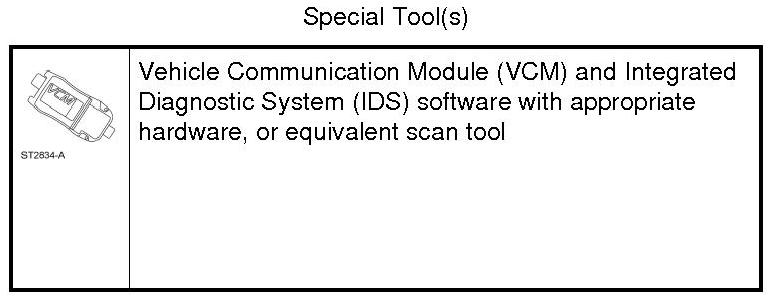

10. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
